5 Pin Configuration and Functions

GUID-D92016BA-5EE2-41AC-9ACB-FC6AD141AF1C-low.gifFigure 5-1 CD4051B E, M, NS, and PW Package,16-Pin PDIP, CDIP, SOIC, SOP, and TSSOP(Top View)
GUID-2CA2AAAC-9EA6-4603-B325-CEDEA3EC5BBB-low.gifFigure 5-2 CD4052B E, M, NS, and PW Package,16-Pin PDIP, CDIP, SOP, and TSSOP(Top View)

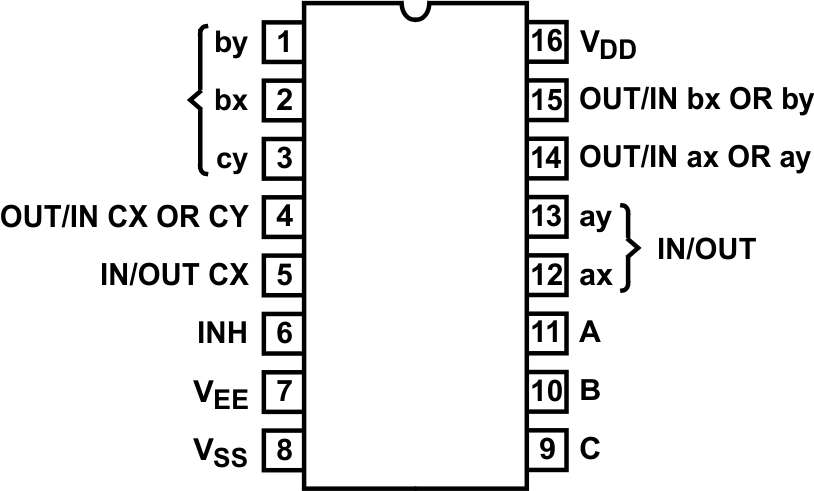

GUID-4D77DFE3-7CFF-4BAA-BD57-E9858FA788F8-low.gifFigure 5-3 CD4053B E, M, NS, and PW Package,16-Pin PDIP, CDIP, SOP, and TSSOP (Top View)
Table 5-1 Pin Functions CD4051B
PIN TYPE(1) DESCRIPTION
NO. NAME
1 CH 4 IN/OUT I/O Channel 4 in/out
2 CH 6 IN/OUT I/O Channel 6 in/out
3 COM OUT/IN I/O Common out/in
4 CH 7 IN/OUT I/O Channel 7 in/out
5 CH 5 IN/OUT I/O Channel 5 in/out
6 INH I Disables all channels. See Table 8-1.
7 VEE — Negative power input
8 VSS — Ground
9 C I Channel select C. See Table 8-1.
10 B I Channel select B. See Table 8-1.
11 A I Channel select A. See Table 8-1.
12 CH 3 IN/OUT I/O Channel 3 in/out
13 CH 0 IN/OUT I/O Channel 0 in/out
14 CH 1 IN/OUT I/O Channel 1 in/out
15 CH 2 IN/OUT I/O Channel 2 in/out
16 VDD — Positive power input
(1) I = input, O = output
Table 5-2 Pin Functions CD4052B
PIN TYPE(1) DESCRIPTION
NO. NAME
1 Y CH 0 IN/OUT I/O Channel Y0 in/out
2 Y CH 2 IN/OUT I/O Channel Y2 in/out
3 Y COM OUT/IN I/O Y common out/in
4 Y CH 3 IN/OUT I/O Channel Y3 in/out
5 Y CH 1 IN/OUT I/O Channel Y1 in/out
6 INH I Disables all channels. See Table 8-1.
7 VEE — Negative power input
8 VSS — Ground
9 B I Channel select B. See Table 8-1.
10 A I Channel select A. See Table 8-1.
11 X CH 3 IN/OUT I/O Channel X3 in/out
12 X CH 0 IN/OUT I/O Channel X0 in/out
13 X COM IN/OUT I/O X common out/in
14 X CH 1 IN/OUT I/O Channel in/out
15 X CH 2 IN/OUT I/O Channel in/out
16 VDD — Positive power input
(1) I = input, O = output
Table 5-3 Pin Functions CD4053B
PIN TYPE(1) DESCRIPTION
NO. NAME
1 BY IN/OUT I/O B channel Y in/out
2 BX IN/OUT I/O B channel X in/out
3 CY IN/OUT I/O C channel Y in/out
4 CX OR CY OUT/IN I/O C common out/in
5 CX IN/OUT I/O C channel X in/out
6 INH I Disables all channels. See Table 8-1.
7 VEE — Negative power input
8 VSS — Ground
9 C I Channel select C. See Table 8-1.
10 B I Channel select B. See Table 8-1.
11 A I Channel select A. See Table 8-1.
12 AX IN/OUT I/O A channel X in/out
13 AY IN/OUT I/O A channel Y in/out
14 AX OR AY OUT/IN I/O A common out/in
15 BX OR BY OUT/IN I/O B common out/in
16 VDD — Positive power input
(1) I = input, O = output
