Application Curve

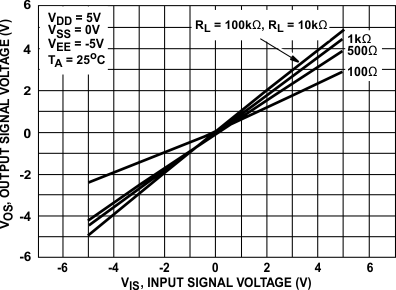

GUID-4E34DB1A-AB0F-4341-99A0-E1F41C2A9D86-low.gifFigure 9-2 ON Characteristics for 1 of 8 Channels (CD4051B)
