7.3 Pin Diagram – RHB Package

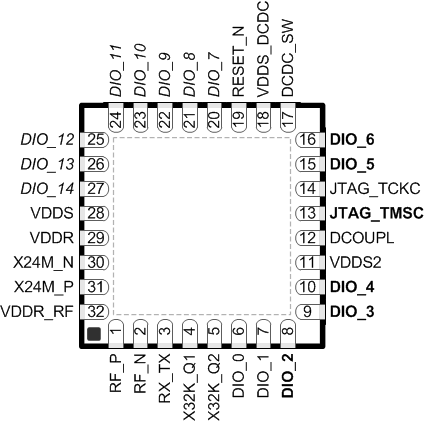

GUID-21504EA8-9EDF-48D0-A891-5397884CECF5-low.gifFigure 7-2 RHB Package 32-Pin VQFN (5-mm × 5-mm) Pinout, 0.5-mm Pitch



I/O pins marked in Figure 7-2 in bold have high-drive capabilities; they are the following:

  • Pin 8, DIO_2
  • Pin 9, DIO_3
  • Pin 10, DIO_4
  • Pin 13, JTAG_TMSC
  • Pin 15, DIO_5
  • Pin 16, DIO_6

I/O pins marked in Figure 7-2 in italics have analog capabilities; they are the following:

  • Pin 20, DIO_7
  • Pin 21, DIO_8
  • Pin 22, DIO_9
  • Pin 23, DIO_10
  • Pin 24, DIO_11
  • Pin 25, DIO_12
  • Pin 26, DIO_13
  • Pin 27, DIO_14
