5.8 Typical Characteristics

A. The A input is connected to VCC during testing of the Y outputs and to ground during testing of the Z outputs.
Figure 5-1 Output Voltage vs Enable G Input Voltage
B. The A input is connected to ground during testing of the Y outputs and to VCC during testing of the Z outputs.
Figure 5-3 Output Voltage vs Enable G Input Voltage
A. The A input is connected to VCC during testing of the Y outputs and to ground during testing of the Z outputs.

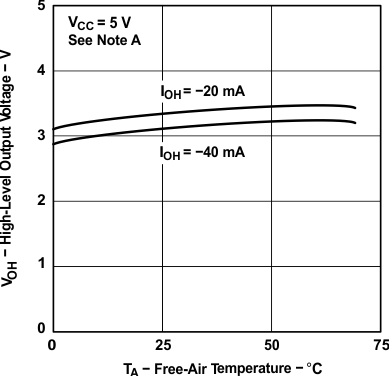

Figure 5-5 High-Level Output Voltage vs Free-Air Temperature
B. The A input is connected to ground during testing of the Y outputs and to VCC during testing of the Z outputs.
Figure 5-7 Low-Level Output Voltage vs Free-Air Temperature
GUID-29B244B6-9A92-49E6-A59F-C5ED92949C99-low.gifFigure 5-9 Y Output Voltage vs Data Input Voltage
A. The A input is connected to VCC during testing of the Y outputs and to ground during testing of the Z outputs.
Figure 5-2 Output Voltage vs Enable G Input Voltage
B. The A input is connected to ground during testing of the Y outputs and to VCC during testing of the Z outputs.
Figure 5-4 Output Voltage vs Enable G Input Voltage
A. The A input is connected to VCC during testing of the Y outputs and to ground during testing of the Z outputs.
Figure 5-6 High-Level Output Voltage vs High-Level Output Current
B. The A input is connected to ground during testing of the Y outputs and to VCC during testing of the Z outputs.
Figure 5-8 Low-Level Output Voltage vs Low-Level Output Current

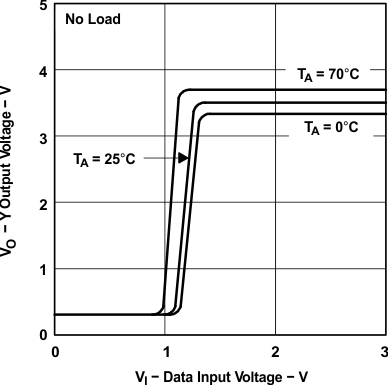

GUID-DAB984E7-836C-4343-A807-F0015DB99337-low.gifFigure 5-10 Y Output Voltage vs Data Input Voltage
