7.5 Optimizing Power Consumed by the Device

  • Keep the analog supply voltage (AVDD) as close as possible to the analog input signal to the device. Set AVDD to be greater than or equal to the analog input signal to the device.
  • Keep the digital supply voltage (DVDD) at the lowest permissible value.
  • In Manual Mode, run the device at the optimum sampling speed. Power consumption scales with Sampling Speed. In Manual Mode, the sampling speed is dependent on time period (or frequency) of SCL (Equation 7). Figure 69 and Figure 70 illustrate scaling of IAVDD and IDVDD with SCL in Manual Mode.
ADS7142 D027_SBAS773.gif
Figure 69. IAVDD in Manual Mode with SCL
ADS7142 D028_SBAS773.gif
DVDD = 3.3 V
Figure 70. IDVDD in Manual Mode with SCL
  • In Autonomous Modes and High Precision Mode, the balance between sampling speed and power consumption can be obtained by selecting the oscillator for conversion and setting the nCLK value. The device sampling speed and power consumption reduce by increasing the nCLK value. Refer to Figure 71, Figure 72, Figure 73 and Figure 74 for current consumption in Autonomous modes and High Precision mode with different nCLK values.

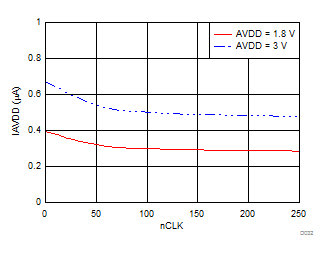

ADS7142 D032_SBAS773.gif
Stop Burst Mode With Low Power Oscillator
Figure 71. IAVDD in Autonomous Modes with nCLK
ADS7142 D043_SBAS773.gif
With Low Power Oscillator
Figure 73. IAVDD in High Precision Mode with nCLK

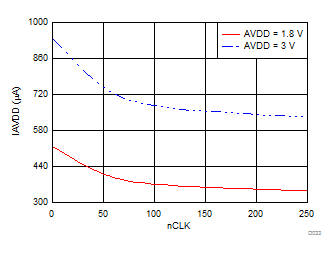

ADS7142 D033_SBAS773.gif
Stop Burst Mode With High Speed Oscillator
Figure 72. IAVDD in Autonomous Modes with nCLK

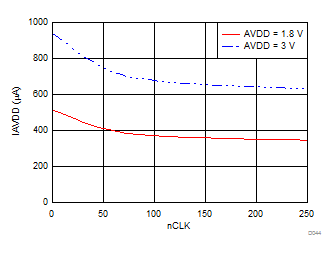

ADS7142 D044_SBAS773.gif
With High Speed Oscillator
Figure 74. IAVDD in High Precision Mode with nCLK
