7.4.2.2 Manual Mode with AUTO Sequence

Set the OPMODE_SEL register to 100b or 101b for Manual Mode with AUTO Sequence. The host has to set the SEQ_START bit in START_SEQUENCE register and provide the device address and read bit to start the conversions. To continue with conversions and reading data, the host must provide continuous SCL (Figure 56). In this mode, the SEQ_ABORT bit in ABORT_SEQUENCE register must be set to abort the operation. Then the device operation mode can be changed to another operation mode. In this mode, a register read aborts the AUTO sequence.

In Manual Mode, the device always uses the High Speed Oscillator and the nCLK parameter has no effect. The maximum scan rate is given by Equation 7:

Equation 7. ADS7142 eq-sampling-speed-I2C-sbas773.gif

where

  • fs = Maximum sampling Speed in kSPS
  • TSCL= Time period of SCL clock (in µsec)
  • if TSCL-LOW (Low period of SCL) < 1.8.µsec, k = (1.8 - TSCL-LOW) and Device stretches clock in Manual Mode. Not Applicable for Standard I2C Mode (100 kHz).
  • if TSCL-LOW (Low period of SCL) ≥ 1.8.µsec, k = 0 and Device does not stretch clock in Manual Mode.

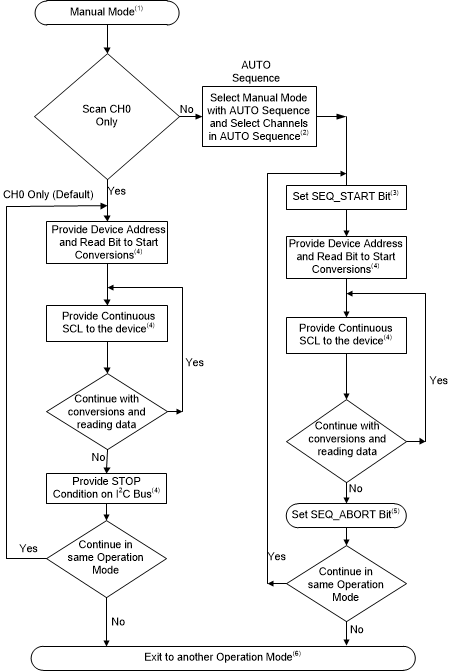

ADS7142 fc_I2C_command_mode_BAS773.gif
1. For setting the operation mode to Manual mode, Refer to Figure 54
2. Select Manual mode with AUTO sequence in OPMODE_SEL register. Select channels in AUTO_SEQ_CFG register.
3. Set the bit SEQ_START bit in the START_SEQUENCE register.
4. Refer to Figure 56 .
5. Set the bit SEQ_ABORT bit in the ABORT_SEQUENCE register .
6. Select another operation mode in the OPMODE_SEL register.
7. For reading and writing registers, Refer to Device Programming section.
Figure 55. Device Operation in Manual Mode

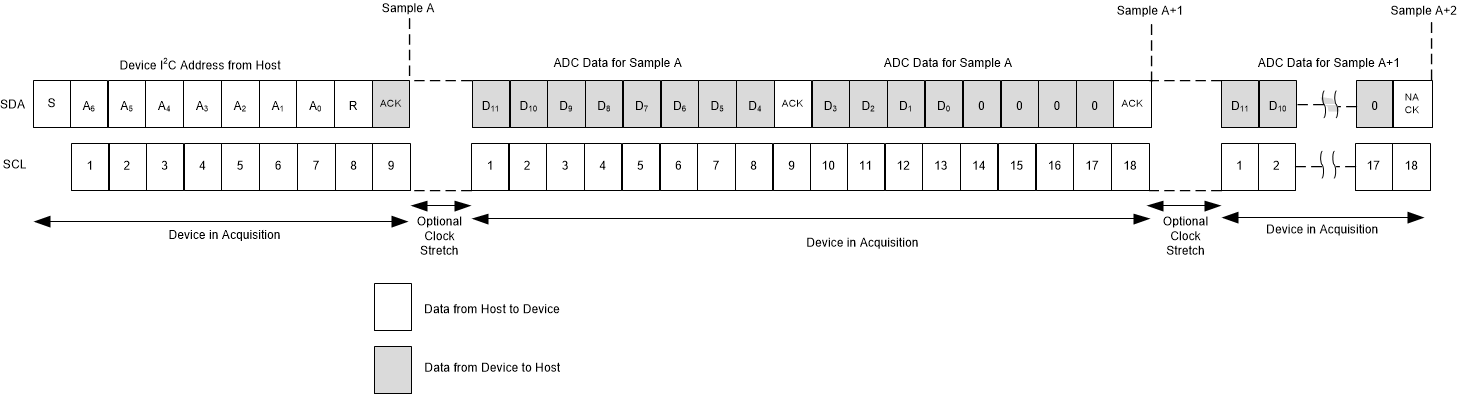

Data can be read from the device by providing a device address and read bit followed by continuous SCL as shown in Figure 56.

ADS7142 tim_data_ext_conv_sbas773.gif
1. Refer to Equation 7 for sampling speed in Manual Mode.
2. If device scans both channels in AUTO sequence, first data (For Sample A) is from CH0 and second data(For Sample A +1) is from CH1.
Figure 56. Starting Conversion and Reading Data in Manual Mode
