6.12 Typical Characteristics for Manual Mode

At TA = 25°C, AVDD = 3 V, DVDD = 3.3 V, and Two-Channel, Single-Ended Configuration, unless otherwise noted.
ADS7142 D005_SBAS773.gif
SNR = 69.6 dB THD = -82.9 dB ENOB = 11.2
fsample = 140 kSPS SFDR = 87.2 dB AVDD = 1.8 V
Figure 5. Typical FFT in Manual Mode
ADS7142 D006_SBAS773.gif
SNR = 71.7 dB THD = -85 dB ENOB = 11.5
fsample = 140 kSPS SFDR = 89.2 dB AVDD = 3 V
Figure 6. Typical FFT in Manual Mode
ADS7142 D007_SBAS773.gif
fsample = 140 kSPS
Figure 7. SNR and SINAD in Manual Mode with Temperature
ADS7142 D009_SBAS773.gif
fsample = 140 kSPS

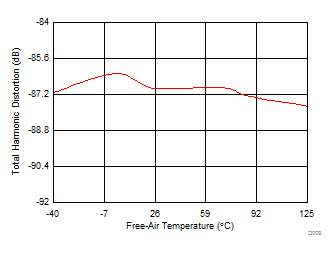

Figure 9. THD in Manual Mode with Temperature
ADS7142 D011_SBAS773.gif
fsample = 140 kSPS S
Figure 11. THD in Manual Mode with AVDD
ADS7142 D013_SBAS773.gif
Figure 13. Offset Error in Manual Mode with Temperature
ADS7142 D015_SBAS773.gif
Figure 15. Gain Error in Manual Mode with Free-Air Temperature
ADS7142 D017_SBAS773.gif
AVDD = 3 V
Figure 17. Typical DNL in Manual Mode
ADS7142 D019_SBAS773.gif
AVDD = 3 V
Figure 19. Typical INL in Manual Mode
ADS7142 D021_SBAS773.gif

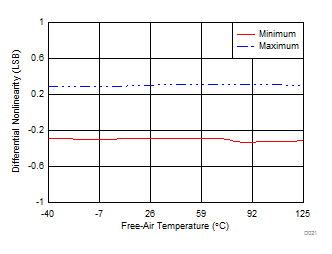

Figure 21. DNL in Manual Mode with Temperature
ADS7142 D023_SBAS773.gif
Figure 23. INL in Manual Mode with Temperature
ADS7142 D025_SBAS773.gif
fSample = 140 kSPS SCL = 3.4 MHz
Figure 25. IAVDD in Manual Mode with AVDD
ADS7142 D029_SBAS773.gif
DVDD = 1.8 V
Figure 27. IDVDD in Manual Mode with SCL
ADS7142 D031_SBAS773.gif
No Activity on SCL and SDA
Figure 29. Static IDVDD in Manual Mode with Temperature
ADS7142 D008_SBAS773.gif
fsample = 140 kSPS
Figure 8. SNR and SINAD in Manual Mode with AVDD
ADS7142 D010_SBAS773.gif
fsample = 140 kSPS
Figure 10. SFDR in Manual Mode with Temperature
ADS7142 D012_SBAS773.gif
Mean code = 2046.9 Standard Deviation = 0.34
Figure 12. Typical DC Code Spread in Manual Mode
ADS7142 D014_SBAS773.gif

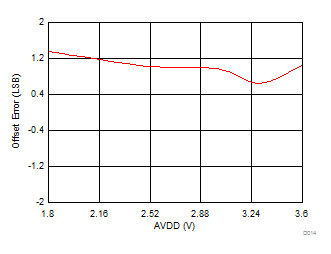

Figure 14. Offset Error in Manual Mode with AVDD
ADS7142 D016_SBAS773.gif

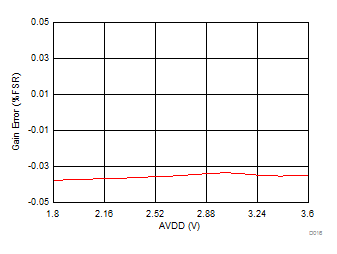

Figure 16. Gain Error in Manual Mode with AVDD
ADS7142 D018_SBAS773.gif
AVDD = 1.8 V
Figure 18. Typical DNL in Manual Mode
ADS7142 D020_SBAS773.gif
AVDD = 1.8 V
Figure 20. Typical INL in Manual Mode
ADS7142 D022_SBAS773.gif

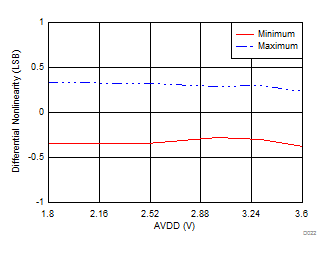

Figure 22. DNL in Manual Mode with AVDD
ADS7142 D024_SBAS773.gif
Figure 24. INL in Manual Mode with AVDD
ADS7142 D026_SBAS773.gif

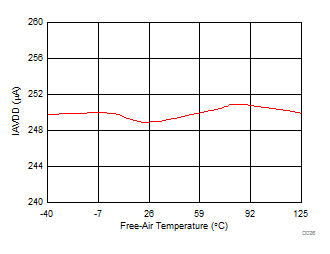

Figure 26. IAVDD in Manual Mode with Temperature
ADS7142 D030_SBAS773.gif

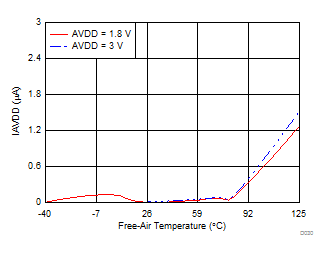

No Activity on SCL and SDA
Figure 28. Static IAVDD in Manual Mode with Temperature
