ZHCSCX1D January   2014  – October 2017 ADC12J4000

PRODUCTION DATA.

  1. 1 特性
  2. 2 应用
  3. 3 说明
    1.     Device Images
      1.      旁路 — 频谱响应 ƒS = 4GHz，FIN = 1897MHz
  4. 4 修订历史记录
  5. 5 Pin Configuration and Functions
    1.     Pin Functions
  6. 6 Specifications
    1. 6.1 Absolute Maximum Ratings
    2. 6.2 ESD Ratings
    3. 6.3 Recommended Operating Conditions
    4. 6.4 Thermal Information
    5. 6.5 Electrical Characteristics
    6. 6.6 Timing Requirements
    7. 6.7 Internal Characteristics
    8. 6.8 Switching Characteristics
    9. 6.9 Typical Characteristics
  7. 7 Detailed Description
    1. 7.1 Overview
    2. 7.2 Functional Block Diagram
    3. 7.3 Feature Description
      1. 7.3.1 Signal Acquisition
      2. 7.3.2 The Analog Inputs
        1. 7.3.2.1 Input Clamp
        2. 7.3.2.2 AC Coupled Input Usage
        3. 7.3.2.3 DC Coupled Input Usage
        4. 7.3.2.4 Handling Single-Ended Input Signals
      3. 7.3.3 Clocking
      4. 7.3.4 Over-Range Function
      5. 7.3.5 ADC Core Features
        1. 7.3.5.1 The Reference Voltage
        2. 7.3.5.2 Common-Mode Voltage Generation
        3. 7.3.5.3 Bias Current Generation
        4. 7.3.5.4 Full Scale Range Adjust
        5. 7.3.5.5 Offset Adjust
        6. 7.3.5.6 Power-Down
        7. 7.3.5.7 Built-In Temperature Monitor Diode
      6. 7.3.6 Digital Down Converter (DDC)
        1. 7.3.6.1 NCO/Mixer
        2. 7.3.6.2 NCO Settings
          1. 7.3.6.2.1 NCO Frequency Phase Selection
          2. 7.3.6.2.2 NCO_0, NCO_1, and NCO_2 (NCO_x)
          3. 7.3.6.2.3 NCO_SEL Bits (2:0)
          4. 7.3.6.2.4 NCO Frequency Setting (Eight Total)
            1. 7.3.6.2.4.1 Basic NCO Frequency-Setting Mode
            2. 7.3.6.2.4.2 Rational NCO Frequency Setting Mode
          5. 7.3.6.2.5 NCO Phase-Offset Setting (Eight Total)
          6. 7.3.6.2.6 Programmable DDC Delay
        3. 7.3.6.3 Decimation Filters
        4. 7.3.6.4 DDC Output Data
        5. 7.3.6.5 Decimation Settings
          1. 7.3.6.5.1 Decimation Factor
          2. 7.3.6.5.2 DDC Gain Boost
      7. 7.3.7 Data Outputs
        1. 7.3.7.1 The Digital Outputs
        2. 7.3.7.2 JESD204B Interface Features and Settings
          1. 7.3.7.2.1  Scrambler Enable
          2. 7.3.7.2.2  Frames Per Multi-Frame (K-1)
          3. 7.3.7.2.3  DDR
          4. 7.3.7.2.4  JESD Enable
          5. 7.3.7.2.5  JESD Test Modes
          6. 7.3.7.2.6  Configurable Pre-Emphasis
          7. 7.3.7.2.7  Serial Output-Data Formatting
          8. 7.3.7.2.8  JESD204B Synchronization Features
          9. 7.3.7.2.9  SYSREF
          10. 7.3.7.2.10 SYNC~
          11. 7.3.7.2.11 Time Stamp
          12. 7.3.7.2.12 Code-Group Synchronization
          13. 7.3.7.2.13 Multiple ADC Synchronization
    4. 7.4 Device Functional Modes
      1. 7.4.1 DDC Bypass Mode
      2. 7.4.2 DDC Modes
      3. 7.4.3 Calibration
        1. 7.4.3.1 Foreground Calibration Mode
        2. 7.4.3.2 Background Calibration Mode
      4. 7.4.4 Timing Calibration Mode
      5. 7.4.5 Test-Pattern Modes
        1. 7.4.5.1 ADC Test-Pattern Mode
        2. 7.4.5.2 Serializer Test-Mode Details
        3. 7.4.5.3 PRBS Test Modes
        4. 7.4.5.4 Ramp Test Mode
        5. 7.4.5.5 Short and Long-Transport Test Mode
        6. 7.4.5.6 D21.5 Test Mode
        7. 7.4.5.7 K28.5 Test Mode
        8. 7.4.5.8 Repeated ILA Test Mode
        9. 7.4.5.9 Modified RPAT Test Mode
    5. 7.5 Programming
      1. 7.5.1 Using the Serial Interface
        1. 7.5.1.1 Streaming Mode
    6. 7.6 Register Map
      1. 7.6.1 Memory Map
      2. 7.6.2 Register Descriptions
        1. 7.6.2.1 Standard SPI-3.0 (0x000 to 0x00F)
          1. Table 40. Standard SPI-3.0 Registers
          2. 7.6.2.1.1  Configuration A Register (address = 0x000) [reset = 0x3C]
            1. Table 41. CFGA Field Descriptions
          3. 7.6.2.1.2  Configuration B Register (address = 0x001) [reset = 0x00]
            1. Table 42. CFGB Field Descriptions
          4. 7.6.2.1.3  Device Configuration Register (address = 0x002) [reset = 0x00]
            1. Table 43. DEVCFG Field Descriptions
          5. 7.6.2.1.4  Chip Type Register (address = 0x003) [reset = 0x03]
            1. Table 44. CHIP_TYPE Field Descriptions
          6. 7.6.2.1.5  Chip Version Register (address = 0x006) [reset = 0x13]
            1. Table 45. CHIP_VERSION Field Descriptions
          7. 7.6.2.1.6  Vendor Identification Register (address = 0x00C to 0x00D) [reset = 0x0451]
            1. Table 46. VENDOR_ID Field Descriptions
        2. 7.6.2.2 User SPI Configuration (0x010 to 0x01F)
          1. 7.6.2.2.1 User SPI Configuration Register (address = 0x010) [reset = 0x00]
            1. Table 48. USR0 Field Descriptions
        3. 7.6.2.3 General Analog, Bias, Band Gap, and Track and Hold (0x020 to 0x02F)
          1. 7.6.2.3.1 Power-On Reset Register (address = 0x021) [reset = 0x00]
            1. Table 50. POR Field Descriptions
          2. 7.6.2.3.2 I/O Gain 0 Register (address = 0x022) [reset = 0x40]
            1. Table 51. IO_GAIN_0 Field Descriptions
          3. 7.6.2.3.3 IO_GAIN_1 Register (address = 0x023) [reset = 0x00]
            1. Table 52. IO_GAIN_1 Field Descriptions
          4. 7.6.2.3.4 I/O Offset 0 Register (address = 0x025) [reset = 0x40]
            1. Table 53. IO_OFFSET_0 Field Descriptions
          5. 7.6.2.3.5 I/O Offset 1 Register (address = 0x026) [reset = 0x00]
            1. Table 54. IO_OFFSET_1 Field Descriptions
        4. 7.6.2.4 Clock (0x030 to 0x03F)
          1. 7.6.2.4.1 Clock Generator Control 0 Register (address = 0x030) [reset = 0xC0]
            1. Table 56. CLKGEN_0 Field Descriptions
          2. 7.6.2.4.2 Clock Generator Status Register (address = 0x031) [reset = 0x07]
            1. Table 57. CLKGEN_1 Field Descriptions
          3. 7.6.2.4.3 Clock Generator Control 2 Register (address = 0x032) [reset = 0x80]
            1. Table 58. CLKGEN_2 Field Descriptions
          4. 7.6.2.4.4 Analog Miscellaneous Register (address = 0x033) [reset = 0xC3]
            1. Table 59. ANA_MISC Field Descriptions
          5. 7.6.2.4.5 Input Clamp Enable Register (address = 0x034) [reset = 0x2F]
            1. Table 60. IN_CL_EN Field Descriptions
        5. 7.6.2.5 Serializer (0x040 to 0x04F)
          1. 7.6.2.5.1 Serializer Configuration Register (address = 0x040) [reset = 0x04]
            1. Table 62. SER_CFG Field Descriptions
        6. 7.6.2.6 ADC Calibration (0x050 to 0x1FF)
          1. 7.6.2.6.1 Calibration Configuration 0 Register (address = 0x050) [reset = 0x06]
            1. Table 64. CAL_CFG0 Field Descriptions
          2. 7.6.2.6.2 Calibration Configuration 1 Register (address = 0x051) [reset = 0xF4]
            1. Table 65. CAL_CFG1 Field Descriptions
          3. 7.6.2.6.3 Calibration Background Control Register (address = 0x057) [reset = 0x10]
            1. Table 66. CAL_BACK Field Descriptions
          4. 7.6.2.6.4 ADC Pattern and Over-Range Enable Register (address = 0x058) [reset = 0x00]
            1. Table 67. ADC_PAT_OVR_EN Field Descriptions
          5. 7.6.2.6.5 Calibration Vectors Register (address = 0x05A) [reset = 0x00]
            1. Table 68. CAL_VECTOR Field Descriptions
          6. 7.6.2.6.6 Calibration Status Register (address = 0x05B) [reset = undefined]
            1. Table 69. CAL_STAT Field Descriptions
          7. 7.6.2.6.7 Timing Calibration Register (address = 0x066) [reset = 0x02]
            1. Table 70. CAL_STAT Field Descriptions
        7. 7.6.2.7 Digital Down Converter and JESD204B (0x200-0x27F)
          1. 7.6.2.7.1  Digital Down-Converter (DDC) Control Register (address = 0x200) [reset = 0x10]
            1. Table 72. DDC_CTRL1 Field Descriptions
          2. 7.6.2.7.2  JESD204B Control 1 Register (address = 0x201) [reset = 0x0F]
            1. Table 73. JESD_CTRL1 Field Descriptions
          3. 7.6.2.7.3  JESD204B Control 2 Register (address = 0x202) [reset = 0x00]
            1. Table 74. JESD_CTRL2 Field Descriptions
          4. 7.6.2.7.4  JESD204B Device ID (DID) Register (address = 0x203) [reset = 0x00]
            1. Table 75. JESD_DID Field Descriptions
          5. 7.6.2.7.5  JESD204B Control 3 Register (address = 0x204) [reset = 0x00]
            1. Table 76. JESD_CTRL3 Field Descriptions
          6. 7.6.2.7.6  JESD204B and System Status Register (address = 0x205) [reset = Undefined]
            1. Table 77. JESD_STATUS Field Descriptions
          7. 7.6.2.7.7  Overrange Threshold 0 Register (address = 0x206) [reset = 0xF2]
            1. Table 78. OVR_T0 Field Descriptions
          8. 7.6.2.7.8  Overrange Threshold 1 Register (address = 0x207) [reset = 0xAB]
            1. Table 79. OVR_T1 Field Descriptions
          9. 7.6.2.7.9  Overrange Period Register (address = 0x208) [reset = 0x00]
            1. Table 80. OVR_N Field Descriptions
          10. 7.6.2.7.10 DDC Configuration Preset Mode Register (address = 0x20C) [reset = 0x00]
            1. Table 81. NCO_MODE Field Descriptions
          11. 7.6.2.7.11 DDC Configuration Preset Select Register (address = 0x20D) [reset = 0x00]
            1. Table 82. NCO_SEL Field Descriptions
          12. 7.6.2.7.12 Rational NCO Reference Divisor Register (address = 0x20E to 0x20F) [reset = 0x0000]
            1. Table 83. NCO_RDIV Field Descriptions
          13. 7.6.2.7.13 NCO Frequency (Preset x) Register (address = see ) [reset = see ]
            1. Table 84. NCO_FREQ_x Field Descriptions
          14. 7.6.2.7.14 NCO Phase (Preset x) Register (address = see ) [reset = see ]
            1. Table 85. NCO_PHASE_x Field Descriptions
          15. 7.6.2.7.15 DDC Delay (Preset x) Register (address = see ) [reset = see ]
            1. Table 86. DDC_DLY_x Field Descriptions
  8. 8 Application and Implementation
    1. 8.1 Application Information
    2. 8.2 Typical Application
      1. 8.2.1 RF Sampling Receiver
        1. 8.2.1.1 Design Requirements
        2. 8.2.1.2 Detailed Design Procedure
        3. 8.2.1.3 Application Curves
      2. 8.2.2 Oscilloscope
        1. 8.2.2.1 Design Requirements
        2. 8.2.2.2 Detailed Design Procedure
        3. 8.2.2.3 Application Curves
    3. 8.3 Initialization Set-Up
      1. 8.3.1 JESD204B Startup Sequence
    4. 8.4 Dos and Don'ts
      1. 8.4.1 Common Application Pitfalls
  9. 9 Power Supply Recommendations
    1. 9.1 Supply Voltage
  10. 10Layout
    1. 10.1 Layout Guidelines
    2. 10.2 Layout Example
    3. 10.3 Thermal Management
  11. 11器件和文档支持
    1. 11.1 器件支持
      1. 11.1.1 Third-Party Products Disclaimer
      2. 11.1.2 开发支持
      3. 11.1.3 器件命名规则
    2. 11.2 文档支持
      1. 11.2.1 相关文档
    3. 11.3 社区资源
    4. 11.4 商标
    5. 11.5 静电放电警告
    6. 11.6 Glossary
  12. 12机械、封装和可订购信息

封装选项

机械数据 (封装 | 引脚)
散热焊盘机械数据 (封装 | 引脚)
订购信息

6.9 Typical Characteristics

Unless otherwise noted, these specifications apply for V(VA12) = V(VD12) = 1.2 V, V(VA19) = 1.9 V, VIN FSR (AC coupled) = Default setting, differential AC-coupled sinewave input clock, ƒ(DEVCLK) = 4 GHz at 0.5 VPP with 50% duty cycle, R(RBIAS) = 3.3 kΩ ±0.1%, after a Foreground mode calibration with Timing Calibration enabled. TA = 25°C. VI = –1 dBFS.
ADC12J4000 D002_SLAS989.gif
DDC bypass mode Sampling rate = 4000 MSPS

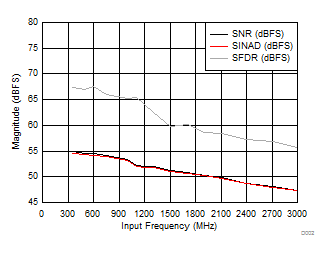

Figure 3. SNR, SINAD, SFDR vs Input Frequency
ADC12J4000 D011_SLAS989.gif
DDC bypass mode FIN = 608 MHz
Figure 5. SNR, SINAD, SFDR vs Decimation Setting

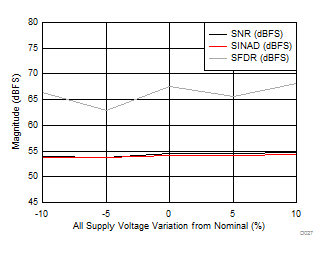

ADC12J4000 D027_SLAS989.gif
DDC bypass mode FIN = 608 MHz
Figure 7. SNR, SINAD, SFDR vs Supply Voltage
ADC12J4000 D067_SLAS989.gif
DDC bypass mode FIN = 351 MHz
Figure 9. SNR vs Temperature and Calibration Mode
ADC12J4000 D009_SLAS989.gif
DDC bypass mode Sampling rate = 4000 MSPS
Figure 11. ENOB vs Input Frequency
ADC12J4000 D013_SLAS989.gif
FIN = 608 MHz

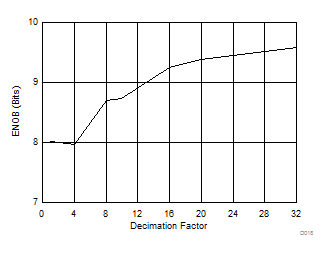

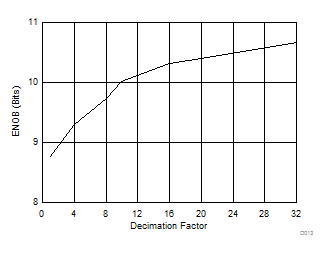

Figure 13. ENOB vs Decimation Setting
ADC12J4000 D028_SLAS989.gif
DDC bypass mode FIN = 608 MHz
Figure 15. ENOB vs Supply Voltage
ADC12J4000 D127_SLAS989.gif
DDC bypass mode FIN = 351 MHz

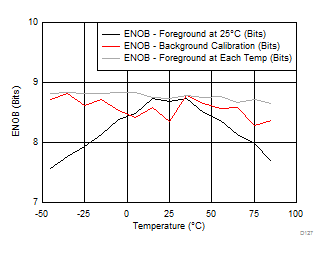

Figure 17. ENOB vs Temperature and Calibration Mode
ADC12J4000 D005_SLAS989.gif
DDC bypass mode FIN = 608 MHz

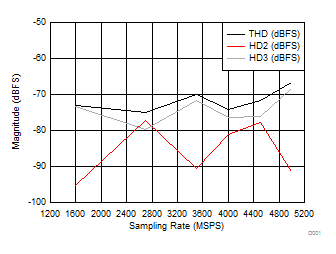

Figure 19. THD, HD2, HD3 vs Sampling Rate
ADC12J4000 D032_SLAS989.gif
DDC bypass mode FIN = 608 MHz
Figure 21. THD, H2, H3 vs Temperature - FIN = 607.77MHz

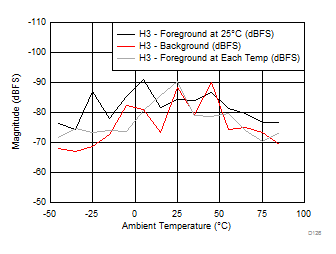

ADC12J4000 D126_SLAS989.gif
DDC bypass mode FIN = 351 MHz
Figure 23. H3 vs Temperature and Calibration Mode
ADC12J4000 D014_SLAS989.gif
FIN = 608 MHz
Figure 25. Power Consumption vs Decimation Setting
ADC12J4000 D041_SLAS989.gif
DDC bypass mode
Figure 27. Power Consumption vs Temperature
ADC12J4000 D015_SLAS989.gif
Foreground calibration mode

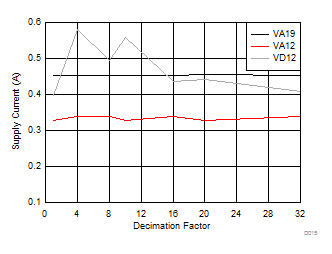

Figure 29. Supply Current vs Decimation Setting
ADC12J4000 D042_SLAS989.gif
A.
DDC bypass mode Foreground calibration mode
Figure 31. Supply Current vs Temperature
ADC12J4000 D038_SLAS989.gif
Background calibration mode
Figure 33. Insertion Loss vs Input Frequency
ADC12J4000 D049_SLAS989.gif

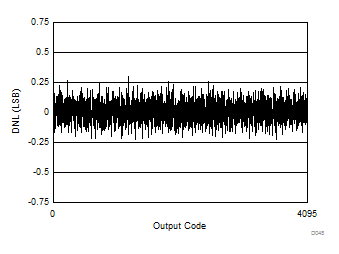

Figure 35. INL versus Code
ADC12J4000 D056_SLAS989.gif
Figure 37. Decimate by 4 - Passband Response
ADC12J4000 D058_SLAS989.gif
Figure 39. Decimate by 8 - Passband Response
ADC12J4000 D060_SLAS989.gif

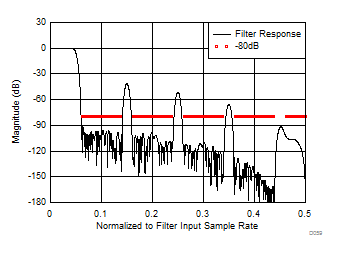

Figure 41. Decimate by 10 - Passband Response
ADC12J4000 D062_SLAS989.gif
Figure 43. Decimate by 16 - Passband Response
ADC12J4000 D064_SLAS989.gif

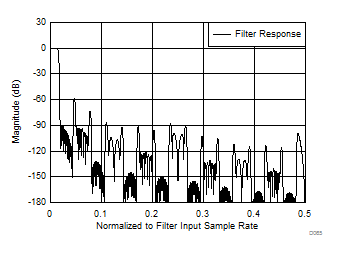

Figure 45. Decimate by 20 - Passband Response
ADC12J4000 D066_SLAS989.gif

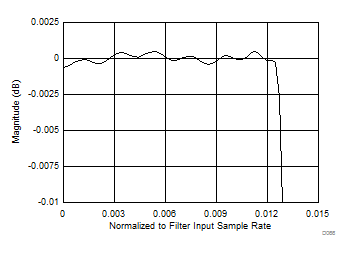

Figure 47. Decimate by 32 - Passband Response
ADC12J4000 D004_SLAS989.gif
DDC bypass mode FIN = 608 MHz
Figure 4. SNR, SINAD, SFDR vs Sampling rate
ADC12J4000 D016_SLAS989.gif
DDC bypass mode FIN = 2483 MHz
Figure 6. SNR, SINAD, SFDR vs Decimation Setting
ADC12J4000 D030_SLAS989.gif
DDC bypass mode FIN = 608 MHz
Figure 8. SNR, SINAD, SFDR vs Temperature
ADC12J4000 D068_SLAS989.gif
DDC bypass mode Input frequency = 351 MHz

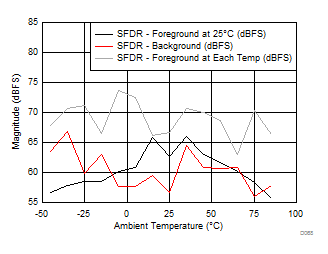

Figure 10. SFDR vs Temperature and Calibration Mode
ADC12J4000 D008_SLAS989.gif
DDC bypass mode FIN = 608 MHz

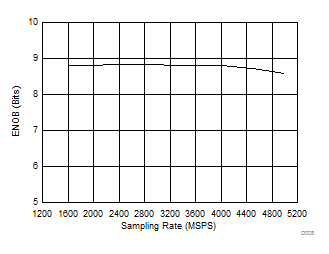

Figure 12. ENOB vs Sampling Rate
ADC12J4000 D018_SLAS989.gif
FIN = 2483 MHz
Figure 14. ENOB vs Decimation Setting
ADC12J4000 D031_SLAS989.gif
DDC bypass mode FIN = 608 MHz

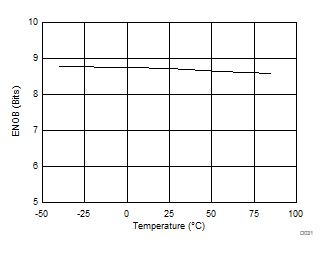

Figure 16. ENOB vs Temperature
ADC12J4000 D003_SLAS989.gif
DDC bypass mode Sampling rate = 4000 MSPS
Figure 18. THD, HD2, HD3 vs Input Frequency
ADC12J4000 D029_SLAS989.gif
DDC bypass mode FIN = 608 MHz
Figure 20. THD, H2, H3 vs Supply Voltage - FIN = 607.77MHz
ADC12J4000 D125_SLAS989.gif
DDC bypass mode FIN = 351 MHz
Figure 22. H2 vs Temperature and Calibration Mode
ADC12J4000 D007_SLAS989.gif
DDC bypass mode FIN = 600 MHz

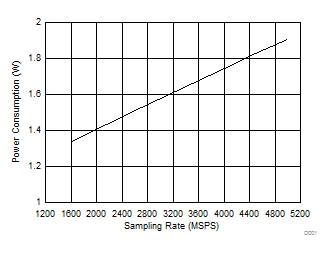

Figure 24. Power Consumption vs Sampling Rate
ADC12J4000 D039_SLAS989.gif
DDC bypass mode
Figure 26. Power Consumption vs Supply Voltage
ADC12J4000 D006_SLAS989.gif
DDC bypass mode FIN = 608 MHz
Figure 28. Supply current vs Sampling Rate
ADC12J4000 D040_SLAS989.gif
DDC bypass mode Foreground calibration mode

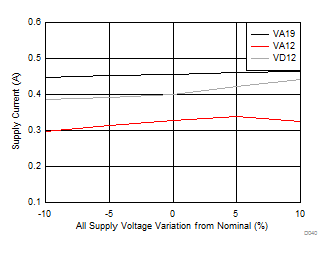

Figure 30. Supply Current vs Supply Voltage
ADC12J4000 D037_SLAS989.gif
Foreground calibration mode
Figure 32. Insertion Loss vs Input Frequency
ADC12J4000 D048_SLAS989.gif
Figure 34. DNL versus Code
ADC12J4000 D055_SLAS989.gif
Figure 36. Decimate by 4 - Stopband Response
ADC12J4000 D057_SLAS989.gif
Figure 38. Decimate by 8 - Stopband Response
ADC12J4000 D059_SLAS989.gif
Figure 40. Decimate by 10 - Stopband Response
ADC12J4000 D061_SLAS989.gif
Figure 42. Decimate by 16 - Stopband Response
ADC12J4000 D063_SLAS989.gif
Figure 44. Decimate by 20 - Stopband Response
ADC12J4000 D065_SLAS989.gif
Figure 46. Decimate by 32 - Stopband Response
