6.10 Typical Characteristics

TPD2S703-Q1 Fig1_SLLSEU8.gif
Figure 2. 8-kV IEC 61400-4-2 Contact Waveform
TPD2S703-Q1 Fig3_SLLSEU8.gif
Figure 4. 8-kV ISO 10605 (330-pF, 330-Ω) Contact Waveform
TPD2S703-Q1 Fig5_SLLSEU8.gif
Figure 6. Data Line I-V Curve
TPD2S703-Q1 Fig7_SLLSEU8.gif

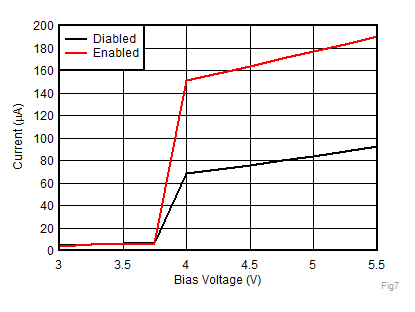

Figure 8. VPWR Operating Current vs Bias Voltage
TPD2S703-Q1 D010_SLLSEU8.gif
Figure 10. VD± Leakage Current at 18 V Across Temperature (Enabled)
TPD2S703-Q1 D011_SLLSEU8.gif
Figure 12. Data Switch Short-to-5 V Response Waveform
TPD2S703-Q1 Fig13_SLLSEU8.gif
Figure 14. FLT Assertion Time During OVP
TPD2S703-Q1 D015_SLLSEU8.gif

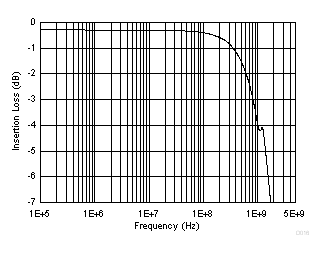

Figure 16. Data Switch Differential Bandwidth
TPD2S703-Q1 D018_SLLSEU8.gif
Figure 18. USB2.0 Eye Diagram (No TPD2S703-Q1)
TPD2S703-Q1 Fig2_SLLSEU8.gif
Figure 3. –8-kV IEC 61400-4-2 Contact Waveform
TPD2S703-Q1 Fig4_SLLSEU8.gif
Figure 5. –8-kV ISO 10605 (330-pF, 330-Ω) Contact Waveform
TPD2S703-Q1 Fig6_SLLSEU8.gif
Figure 7. Data Switch Turnon Time
TPD2S703-Q1 Fig8_SLLSEU8.gif
Figure 9. VPWR Operating Current vs Temperature
(VPWR = 5 V)
TPD2S703-Q1 Fig10_SLLSEU8.gif

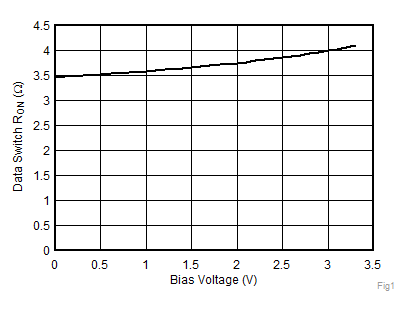

Figure 11. Data Switch RON vs Bias Voltage
TPD2S703-Q1 D012_SLLSEU8.gif
Figure 13. Data Switch Short-to-18 V Response Waveform
TPD2S703-Q1 Fig14_SLLSEU8.gif
Figure 15. FLT Recover Time After OVP Clear
TPD2S703-Q1 D016_SLLSEU8.gif
Figure 17. Data Switch Single-Ended Bandwidth
TPD2S703-Q1 D019_SLLSEU8.gif
Figure 19. USB2.0 Eye Diagram (With TPD2S703-Q1)
