Commands

The commands listed in Table 25 control the operation of the ADS1284. Most commands are stand-alone (that is, one byte in length); the register read and write commands are two bytes long in addition to the actual register data bytes.

Table 25. Command Descriptions

COMMAND TYPE DESCRIPTION 1st COMMAND BYTE(1)(2) 2nd COMMAND BYTE(3)
WAKEUP Control Wake-up from standby mode 0000 000X (00h or 01h)
STANDBY Control Enter standby mode 0000 001X (02h or 03h)
SYNC Control Synchronize the analog-to-digital conversion 0000 010X (04h or 5h)
RESET Control Reset registers to default values 0000 011X (06h or 07h)
RDATAC Control Enter read data continuous mode 0001 0000 (10h)
SDATAC Control Stop read data continuous mode 0001 0001 (11h)
RDATA Data Read data by command(4) 0001 0010 (12h)
RREG Register Read nnnnn register(s) at address rrrrr(4) 001r rrrr (20h + 000r rrrr) 000n nnnn (00h + n nnnn)
WREG Register Write nnnnn register(s) at address rrrrr 010r rrrr (40h + 000r rrrr) 000n nnnn (00h + n nnnn)
OFSCAL Calibration Offset calibration 0110 0000 (60h)
GANCAL Calibration Gain calibration 0110 0001 (61h)
X = don't care.
rrrrr = starting address for register read and write commands.
nnnnn = number of registers to be read from or written to – 1. For example, to read from or write to three registers, set nnnnn = 2 (00010).
Required to cancel read-data-continuous mode before sending a command.

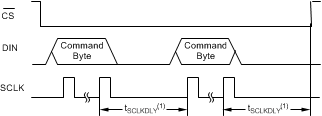

CS must remain low for duration of the command-byte sequence. A delay of 24 fCLK cycles between commands and between bytes within a command is required, starting from the last SCLK rising edge of one command to the first SCLK rising edge of the following command. The required delay is shown in Figure 66.

ADS1284 com_consec_bas565.gif
tSCLKDLY = 24 / fCLK (min).
Figure 66. Consecutive Commands
