6.8 Typical Characteristics

At +25°C, AVDD = 2.5 V, AVSS = –2.5 V, fCLK = 4.096 MHz, VREFP = 2.5 V, VREFN = –2.5 V, DVDD = 3.3 V, PGA = 1, High-Resolution Mode, OFFSET enabled, CHOP enabled, and fDATA = 1000 SPS (unless otherwise noted).
ADS1284 C002_SBAS565.png
Figure 2. Output Spectrum
ADS1284 C003_SBAS565.png
Figure 4. Output Spectrum

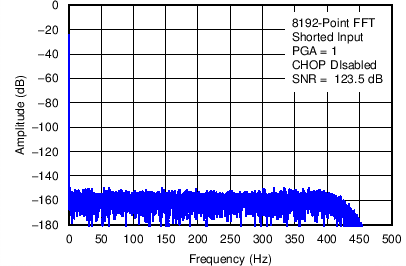

ADS1284 C004_SBAS565.png
Figure 6. Output Spectrum

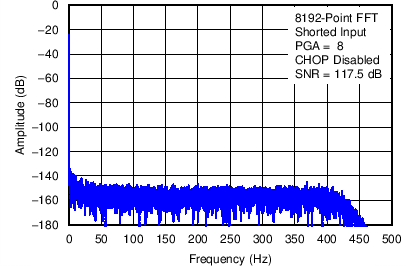

ADS1284 C005_SBAS565.png
Figure 8. Output Spectrum
ADS1284 C016_SBAS565.png
Figure 10. Output Spectrum
ADS1284 C017_SBAS565.png
Figure 12. Output Spectrum
ADS1284 C018_SBAS565.png
Figure 14. Output Spectrum
ADS1284 C007_SBAS565.png
Figure 16. THD vs Temperature
ADS1284 C020_SBAS565.png
Figure 18. THD vs Signal Frequency

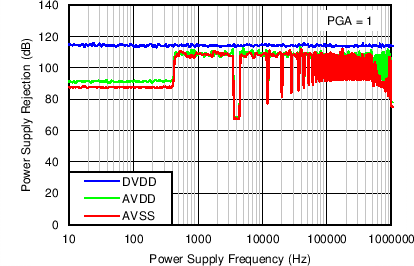

ADS1284 C021_SBAS565.png
Figure 20. PSR vs Power-Supply Frequency
ADS1284 C012_SBAS565.png
Figure 22. Offset-Voltage Drift Histogram
ADS1284 C013_SBAS565.png
Figure 24. Gain-Error Drift Histogram
ADS1284 C008_SBAS565.png
Figure 26. SNR vs Temperature
ADS1284 C014_SBAS565.png
Figure 28. Crosstalk Output Spectrum
ADS1284 C022_SBAS565.png
Figure 30. Input Bias Current vs Input Voltage

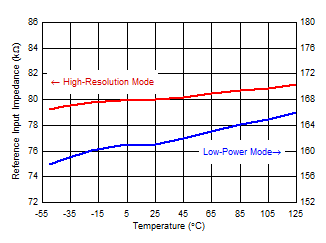

ADS1284 D024_SBAS999.gif
Figure 32. Reference Input Impedance vs Temperature
ADS1284 D027_SBAS999.gif
Figure 3. Output Spectrum (Low-Power mode)
ADS1284 D028_SBAS999.gif
Figure 5. Output Spectrum (Low-Power Mode)
ADS1284 D029_SBAS999.gif
Figure 7. Output Spectrum (Low-Power Mode)
ADS1284 D030_SBAS999.gif
Figure 9. Output Spectrum (Low-Power Mode)
ADS1284 D031_SBAS999.gif
Figure 11. Output Spectrum (Low-Power Mode)
ADS1284 D032_SBAS999.gif
Figure 13. Output Spectrum (Low-Power Mode)
ADS1284 C019_SBAS565.png
Figure 15. Output Spectrum
ADS1284 D025_SBAS999.gif
Figure 17. THD vs Temperature (Low-Power Mode)
ADS1284 C006_SBAS565.png
Figure 19. CMR vs Common-Mode Frequency

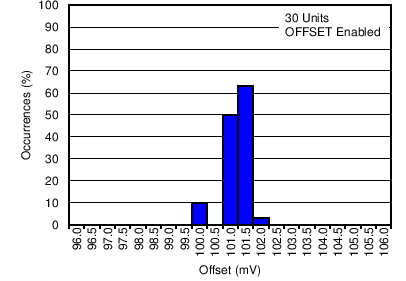

ADS1284 C010_SBAS565.png
Figure 21. Offset-Voltage Histogram
ADS1284 C011_SBAS565.png
Figure 23. Gain-Error Histogram
ADS1284 C015_SBAS565.png
Figure 25. Gain-Match Histogram

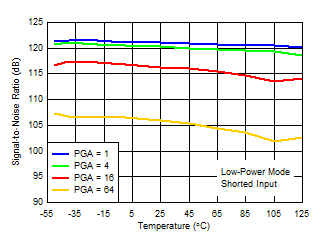

ADS1284 D026_SBAS999.gif
Figure 27. SNR vs Temperature (Low-Power Mode)
ADS1284 D009_SBAS999.gif
Figure 29. Power vs Temperature
ADS1284 C023_SBAS565.png
Figure 31. Input Bias Current vs Input Voltage
