1.4 LED Driver Input Signals

Each color receives 2 control signals ENABLE to turn LED on and off, and PWM signal which controls LED current level. Connector J1 shows all digital inputs into LED driver board including EN and PWM signals, as well as SSI_SUBFRAME, SENSE_PLS and PWM_CAL signals which are used for calibration purposes.

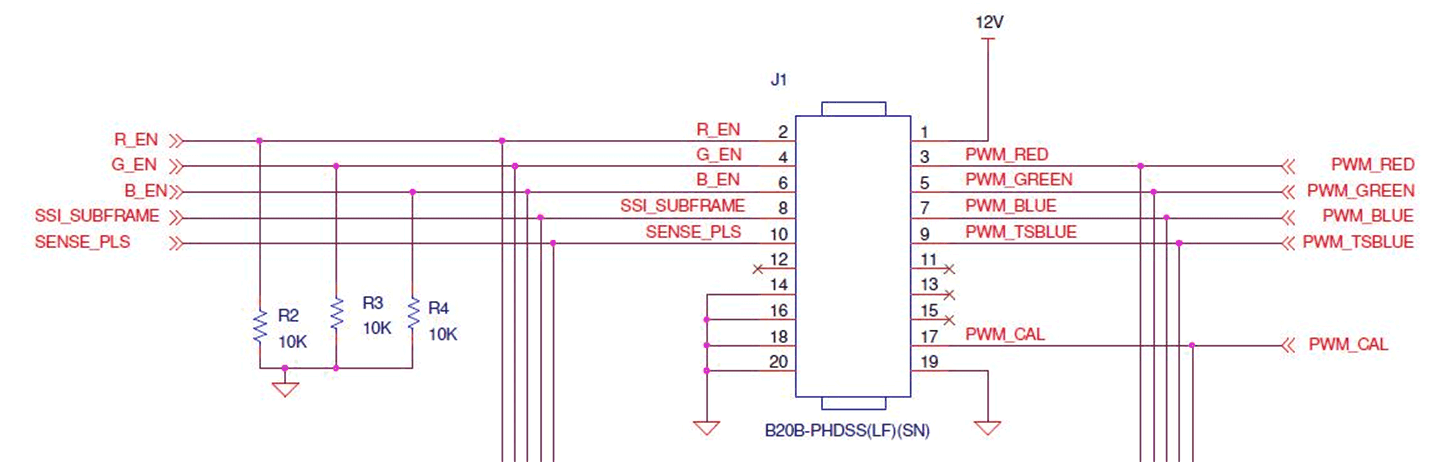

Figure 5. Driver Input SignalsTIDA-080008 Input_Connector.gif
