Typical Characteristics

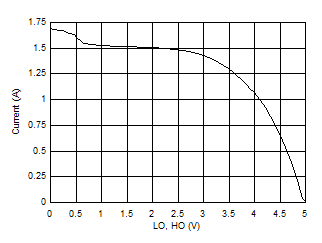

LMG1210 D001_source_current.gifFigure 1. Peak Source Current vs Output Voltage
LMG1210 D003_IDDO_freq.gifFigure 3. IDD vs Frequency, Unloaded

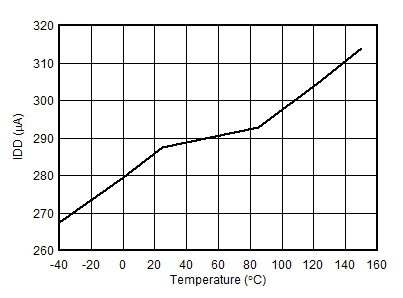

LMG1210 D005_Temp_IDDQ.gifFigure 5. IDD vs Temperature

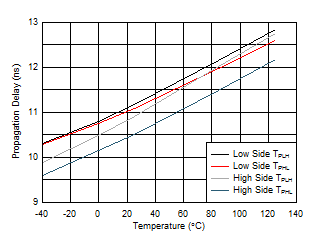

LMG1210 D007_prop_temp.gifFigure 7. Propagation Delay vs Temperature

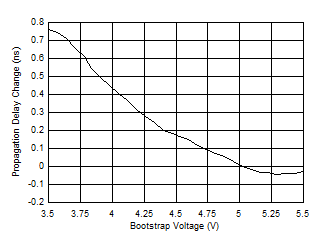

LMG1210 D009_Delay_HB_HS_voltage.gifFigure 9. Propagation Delay Change vs Bootstrap voltage

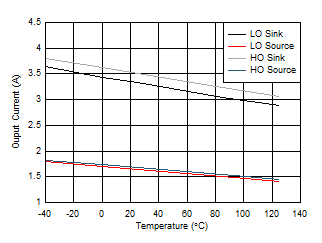

LMG1210 D011_OutputCurrent_Temp.gifFigure 11. LO and HO Output Current vs Temperature

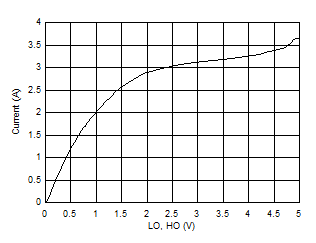

LMG1210 D002_sink_current.gifFigure 2. Peak Sink Current vs Output Voltage
LMG1210 D004_IHBO_freq.gifFigure 4. IHBO vs Frequency, Unloaded
LMG1210 D006_Temp_IHBQ.gifFigure 6. IHB vs Temperature

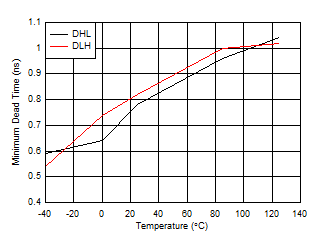

LMG1210 D008_min_dead_temp.gifFigure 8. Minimum Dead Time vs Temperature

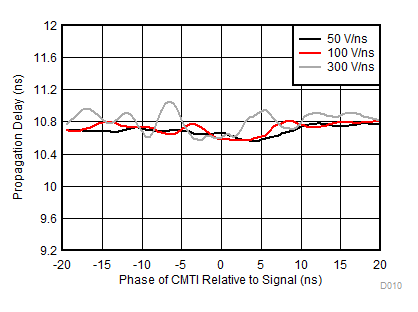

LMG1210 D010_Prop_delay_CMTI_2.gifFigure 10. Propagation Delay vs relative phase of CMTI Phase
LMG1210 D012_rise_fall_temp.gifFigure 12. 1 nF Loaded Rise and Fall Time vs Temperature
