Table 5-18 eUSCI (SPI Slave Mode) Switching Characteristics

over recommended ranges of supply voltage and operating free-air temperature (unless otherwise noted)(1)
PARAMETER TEST CONDITIONS VCC MIN MAX UNIT
tSTE,LEAD STE lead time, STE active to clock 2.0 V 55 ns
3.0 V 45
tSTE,LAG STE lag time, last clock to STE inactive 2.0 V 20 ns
3.0 V 20
tSTE,ACC STE access time, STE active to SOMI data out 2.0 V 65 ns
3.0 V 40
tSTE,DIS STE disable time, STE inactive to SOMI high impedance 2.0 V 40 ns
3.0 V 35
tSU,SI SIMO input data setup time 2.0 V 8 ns
3.0 V 6
tHD,SI SIMO input data hold time 2.0 V 12 ns
3.0 V 12
tVALID,SO SOMI output data valid time(2) UCLK edge to SOMI valid,
CL = 20 pF		 2.0 V 68 ns
3.0 V 42
tHD,SO SOMI output data hold time (3) CL = 20 pF 2.0 V 5 ns
3.0 V 5
(1) fUCxCLK = 1/2tLO/HI with tLO/HI ≥ max(tVALID,MO(Master) + tSU,SI(eUSCI), tSU,MI(Master) + tVALID,SO(eUSCI))
For the master parameters tSU,MI(Master) and tVALID,MO(Master), see the SPI parameters of the attached master.
(2) Specifies the time to drive the next valid data to the SOMI output after the output changing UCLK clock edge. See the timing diagrams in Figure 5-12 and Figure 5-13.
(3) Specifies how long data on the SOMI output is valid after the output changing UCLK clock edge. See the timing diagrams in Figure 5-12 and Figure 5-13.

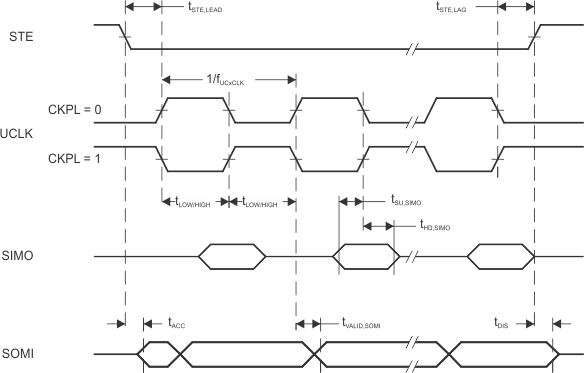

MSP430FR2311 MSP430FR2310 eUSCI_slave_CLKPH0.gifFigure 5-12 SPI Slave Mode, CKPH = 0
MSP430FR2311 MSP430FR2310 eUSCI_slave_CKPH1.gifFigure 5-13 SPI Slave Mode, CKPH = 1

Table 5-19 lists the switching characteristics of the eUSCI (I2C mode).
