2.3 Package Symbolization and Revision Identification

Figure 2-1 and Figure 2-2 show the package symbolization. Table 2-1 lists the silicon revision codes.

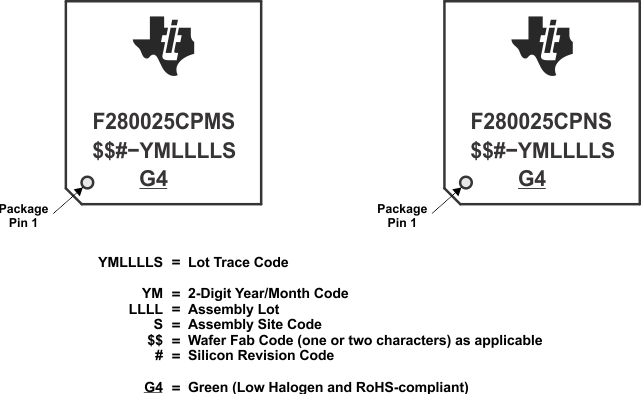

GUID-20200904-CA0I-DDN8-BCRN-T0MLNZPDBTSD-low.gif Figure 2-1 Package Symbolization for PM and PN Packages
GUID-20200904-CA0I-X0WP-KB6R-128FJFCGSJ4F-low.gif Figure 2-2 Package Symbolization for PT Package
Table 2-1 Revision Identification
SILICON REVISION CODESILICON REVISIONREVID(1)
Address: 0x5D00C		COMMENTS(2)
Blank00x0000 0000This silicon revision is available as TMX.
A A 0x0000 0001 This silicon revision is available as TMX and TMS.
(1) Silicon Revision ID
(2) For orderable device numbers, see the PACKAGING INFORMATION table in the TMS320F28002x Real-Time Microcontrollers data sheet.
