Scenario 1: InstaSPIN-MOTION Speed Control with FAST Software Encoder

In this scenario (see Figure 4-1 and Figure 4-2), SpinTAC Velocity Control receives the speed estimate from the FAST estimator and generates the torque reference signal. This works with InstaSPIN-FOC in user memory (see Figure 4-1) or in ROM (see Figure 4-2). The SpinTAC Motion Control Suite provides the motion sequence state machine, generates the reference trajectory and controls the system speed.

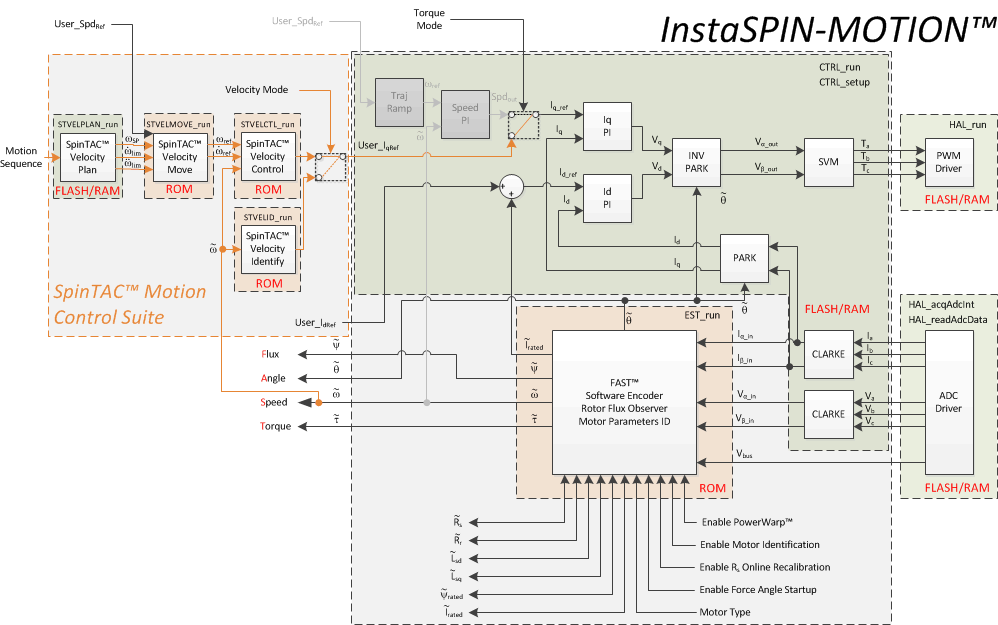

GUID-FBAD32A9-55DD-4AF7-B68E-DA8C74FB1ED8-low.gif Figure 3-1 InstaSPIN-MOTION in User Memory, with Exception of FAST and SpinTAC in ROM

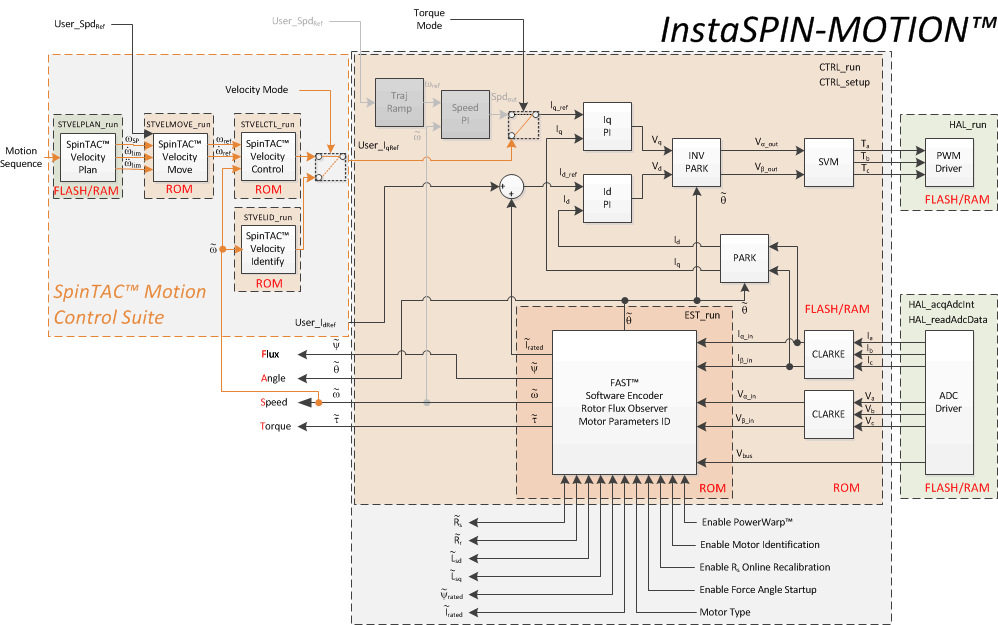

GUID-8AE8AAC1-9191-4077-8E03-B5C5ECE9CBAF-low.gif Figure 3-2 InstaSPIN-MOTION in ROM
