Step Response

The step tests for a position controller provide giving a step input to the controller to determine how quickly the controller can respond to a sudden input change. The two metrics evaluated during these tests are settling time and maximum overshoot. This test is also a measure of stability of your controller. If the controller oscillates upon reaching the goal speed then it is not very stable.

A step profile was applied to SpinTAC Position Control and the PI control system. This step input bypassed the profile generator. The following parameters were measured:

  • Settling Time (from the step input until within 2% of the target position) - the settling time reflects how long it takes the controller to reach the goal position.
  • Maximum Overshoot - maximum mechanical degrees measured after the step input.

Figure 6-13 compares the step responses of SpinTAC Position Control and the PI control system. It also provides a visual representation showing how these metrics were calculated. SpinTAC Position Control was able to reach the goal position with zero overshoot and a shorter settling time than the PI control system.

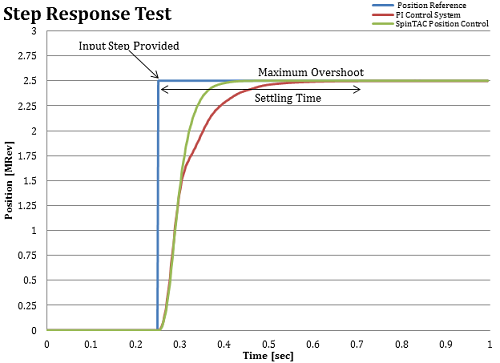

GUID-1630ABAC-C518-4C37-A460-87AA1070BF67-low.pngFigure 5-13 Step Response Test of Maximum Overshoot and Settling Time



Table 5-10 SpinTAC vs PI Position Control Step Response Test Results (Teknic Motor)
Settling Time(s)Overshoot (mechanical degrees)
SpinTACPISpinTAC Advantage (percentage improvement over PI)SpinTACPISpinTAC Advantage (percentage improvement over PI)
0-4.9 mechanical degrees
0.230.5457.40.000.000.0
0.220.4551.10.000.000.0
0.250.4645.70.000.000.0
0.280.4537.80.000.000.0
0.270.4337.20.000.000.0
0-2.5 mechanical degrees
0.240.3634.40.000.000.0
0.230.3839.50.000.000.0
0.240.4141.50.000.000.0
0.230.4042.50.000.000.0
0.210.4148.80.000.000.0
0-1.25 mechanical degrees
0.210.4148.50.000.000.0
0.200.4151.20.000.000.0
0.180.4660.90.000.000.0
0.180.4055.00.000.000.0
0.230.3839.50.000.000.0
Table 5-11 SpinTac vs PI Position Control Step Response Test Results (Estun Motor)
Settling Time(s)Overshoot (mechanical degrees)
SpinTACPISpinTAC Advantage (percentage improvement over PI)SpinTACPISpinTAC Advantage (percentage improvement over PI)
0-4.9 mechanical degrees
0.670.59-13.64.54e+21.26e+363.9
0.940.57-66.14.57e+21.26e+363.7
0.860.57-49.64.58e+21.27e+363.8
0.700.60-15.54.58e+21.27e+363.8
0.810.62-30.14.58e+21.28e+364.3
0-2.5 mechanical degrees
0.530.50-5.88.14e+14.03e+279.8
0.520.48-8.38.14e+14.18e+280.5
0.620.49-27.28.17e+14.10e+280.1
0.560.47-18.28.17e+14.18e+280.5
0.170.4965.28.14e+13.70e+278.0
0-1.25 mechanical degrees
0.530.42-26.20.001.69e+1100
0.530.32-65.60.001.44e+1100
0.530.33-63.10.001.69e+1100
0.530.41-30.60.001.63e+1100
0.600.36-68.40.001.63e+1100
