5.4 Bench Measurement (VOUT = 20 V)

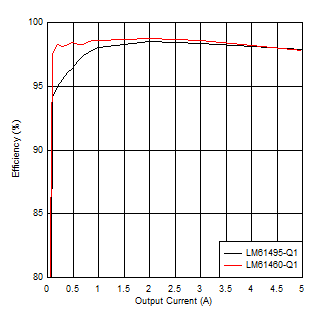

GUID-20211202-SS0I-F2LK-ZTGZ-F8W9MPX7DLRK-low.gif Figure 5-10 Efficiency (VIN= 21 V ; VOUT= 20 V)

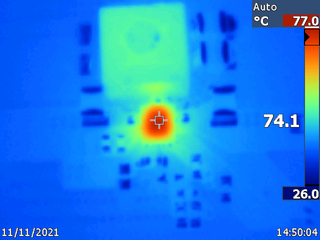

GUID-20211119-SS0I-7G6C-HQKM-XKW10RMWNDSZ-low.jpgFigure 5-11 LM61460-Q1 IR Thermal (VIN= 21 V ; VOUT= 20 V)

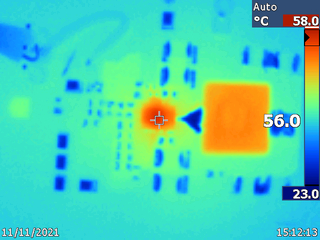

GUID-20211119-SS0I-PLFJ-0VSJ-8QJ9FJGXBV2Q-low.jpgFigure 5-12 LM61495-Q1 IR Thermal (VIN= 21 V ; VOUT= 20 V)
