Output Voltage Load Regulation

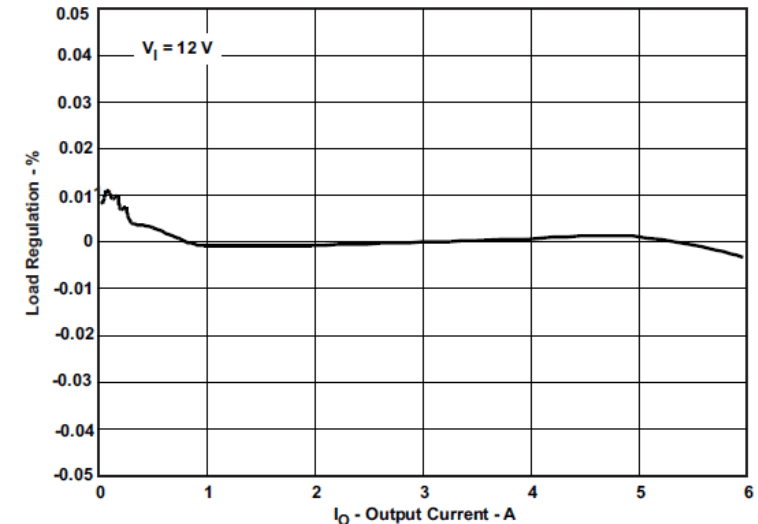

Figure 2-3 shows the load regulation for the TPS54620EVM-374.

GUID-B92A651B-8587-4C9C-89B0-694D016051D5-low.gifFigure 2-3 TPS54620EVM-374 Load Regulation

Measurements are given for an ambient temperature of 25°C.
