2.7 Output Voltage Ripple

The TPS5430EVM-173 and TPS5431EVM-173 output voltage ripple is shown in Figure 2-11 and Figure 2-12 . The output current is the rated full load of 3 A. Voltage is measured directly across output capacitors.

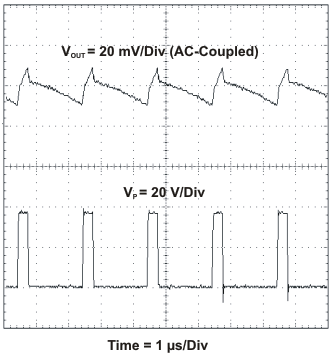

GUID-8622FF8C-E978-454F-8BD2-B796C5A0C0F0-low.gifFigure 2-11 TPS5430 Output Ripple
GUID-00D6B6CC-3823-492E-9D25-61365BDAE20A-low.gifFigure 2-12 PS5431 Output Ripple
