4.4 Output Voltage Ripple

The TPS563300EVM output voltage ripple is shown in Figure 4-4, Figure 4-5, Figure 4-6, Figure 4-7, Figure 4-8 and Figure 4-9. The output currents are as indicated and all waveforms are with 20-MHz scope bandwidth.

GUID-CA1D8AC4-18D9-4476-8F8A-826A373FACAE-low.gifFigure 4-4 TPS563300EVM Output Voltage Ripple, IOUT = 3 A
GUID-C61C9D79-9086-4694-BCF6-1923755EAF97-low.gifFigure 4-5 TPS563300EVM Output Voltage Ripple, IOUT = 2 A

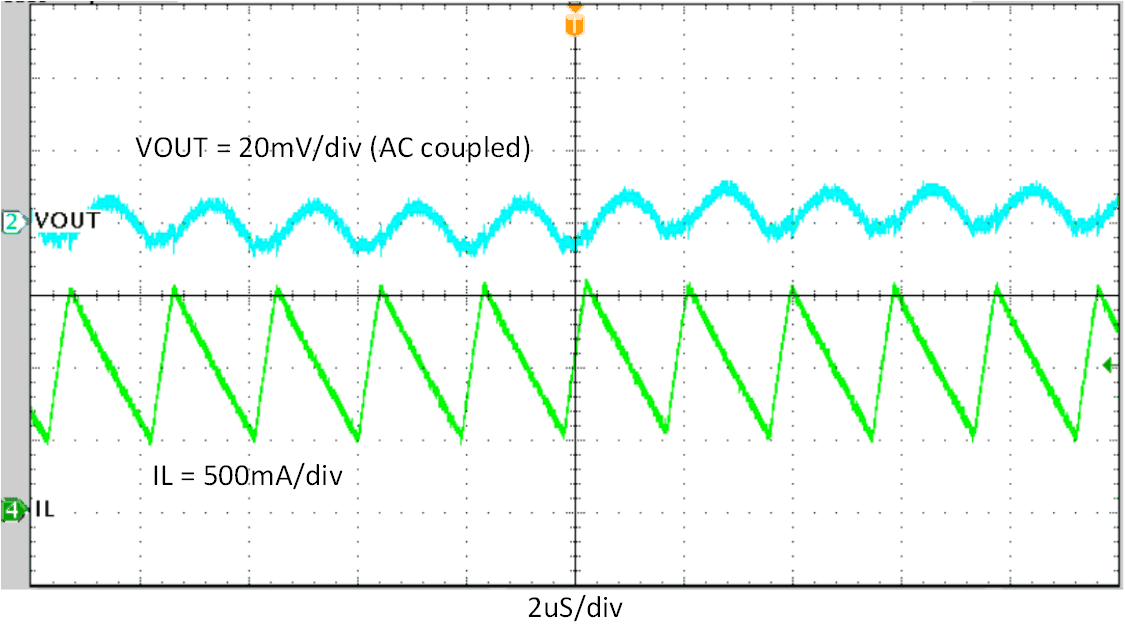

GUID-0C21F1D4-F3B9-46D6-92B7-383FE03D804A-low.gifFigure 4-6 TPS563300EVM Output Voltage Ripple, IOUT = 1 A
GUID-9163D99B-9650-49D3-BE69-C9502E70AF56-low.gifFigure 4-7 TPS563300EVM Output Voltage Ripple, IOUT = 500 mA
GUID-50C94E06-928C-444A-90B8-534B3B3C5255-low.gifFigure 4-8 TPS563300EVM Output Voltage Ripple, IOUT = 100 mA
GUID-3758A13B-9B82-4478-9D9A-D4E3CDBE056F-low.gifFigure 4-9 TPS563300EVM Output Voltage Ripple, IOUT = 0 A
