4.3 Load Transient Response

The TPS563300EVM response to load transient is shown in Figure 4-2 and Figure 4-3. The current steps and slew rates are indicated in the figures with 20-MHz scope bandwidth. Total peak-to-peak voltage variation is as shown.

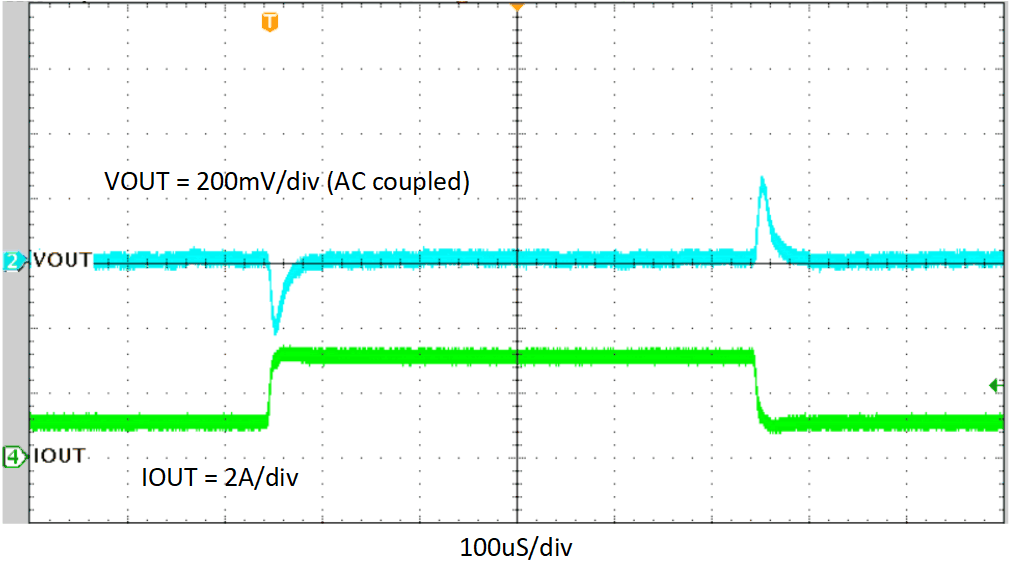

GUID-5967CC97-7458-453A-AD84-9A0B13BE4ADC-low.gifFigure 4-2 TPS563300EVM Load Transient Response, 1-A – 3-A Load Step, 0.8 A/µs
GUID-70292759-3739-42B0-A211-DF27029AC987-low.gifFigure 4-3 TPS563300EVM Load Transient Response, 0.5-A – 2.5-A Load Step, 0.8 A/µs
