Performance Data and Typical Characteristic Curves

Figure 3-1 through Figure 3-4 illustrate the performance data and typical characteristic curves.

Conditions: VIN 50 V, peak threshold = 50, minimum off-time = 127
Figure 3-1 Frequency vs Output Voltage
Conditions: VIN= 50 V, VLED = 24.7 V, peak threshold = 120, minimum off-time = 127
Figure 3-2 Efficiency Over Temperature at Different Peak Threshold Settings
VIN = 12 V, VLED = 3 V, peak threshold = 127, off time = 127
Figure 3-3 PWM Dimming, Multiple PWM Frequencies, Both Channels

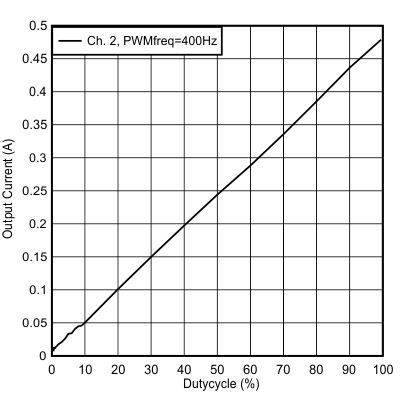

VIN = 12 V, VLED = 3 V, peak threshold = 127, off time = 127
Figure 3-4 Single-Channel PWM Dimming at 400 Hz
