Diode, Inductor, and Boot Capacitor Current at High Output Current

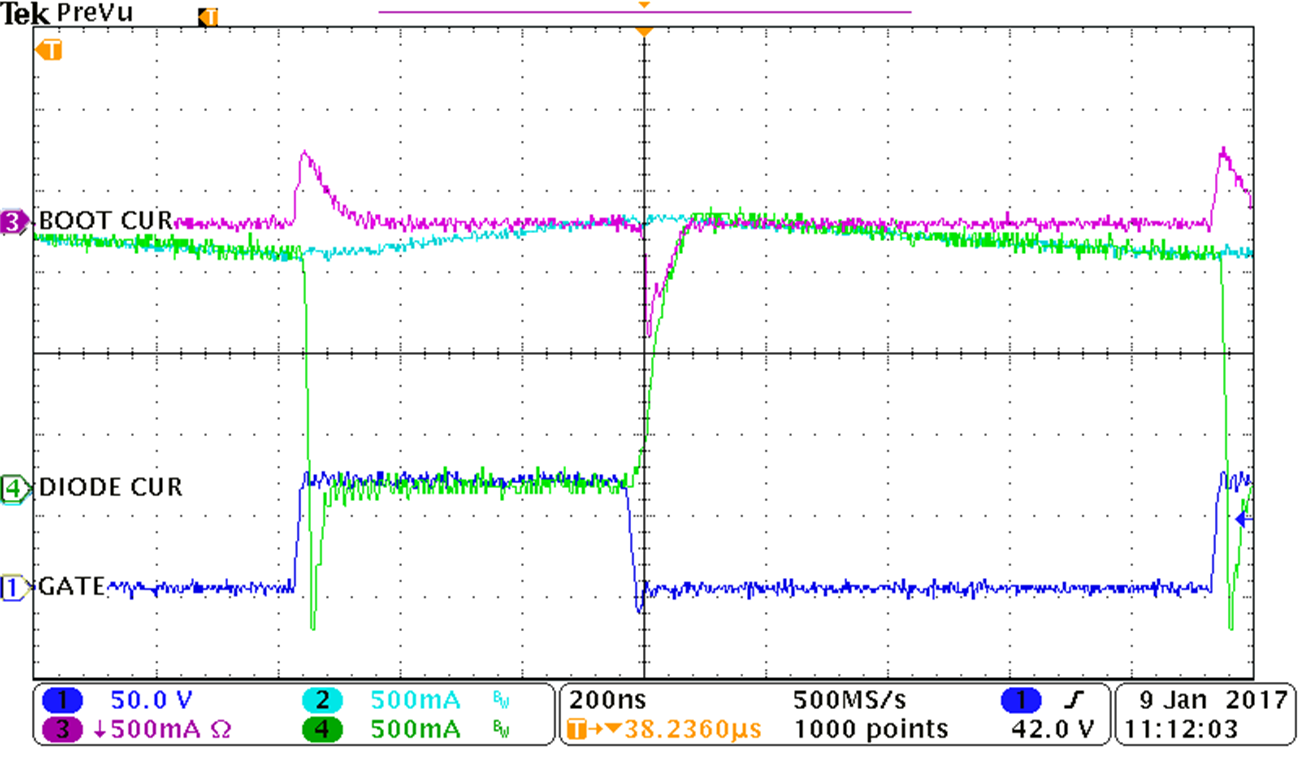

Showing inductor current into the LED and current flow through the catch diode and boot capacitor used for supplying gate drive power. VIN = 65  V, VLED = 23 V, TOFF register setting 50, peak threshold register setting = 1
Figure 3-11 Switch Node Current
