5.1.3 General Layout Rules

LCD signal lines are constantly switching to keep the image on the display, so they should be kept away from any noise-sensitive lines (like the external crystal connections). Guard rings can be used to help shield noise-sensitive lines like the crystal connections or ADC inputs from noise coupling, and having a ground plane underneath the LCD traces and guard traces can also provide shielding.

One good practice is to keep all LCD signal traces (segment and common lines) together similar to a data bus. Keeping the LCD layout in a single layer can also be helpful so that there are not LCD traces running over or under potentially sensitive traces. It is also recommended to keep the charge pump capacitor on the LCDCAP pin as close as possible to the MCU with a short trace. TI reference designs that use LCD displays (like the Gas or Water Meter With 2 LC Sensors reference design TIDM-LC-WATERMTR) demonstrate these good layout principles.

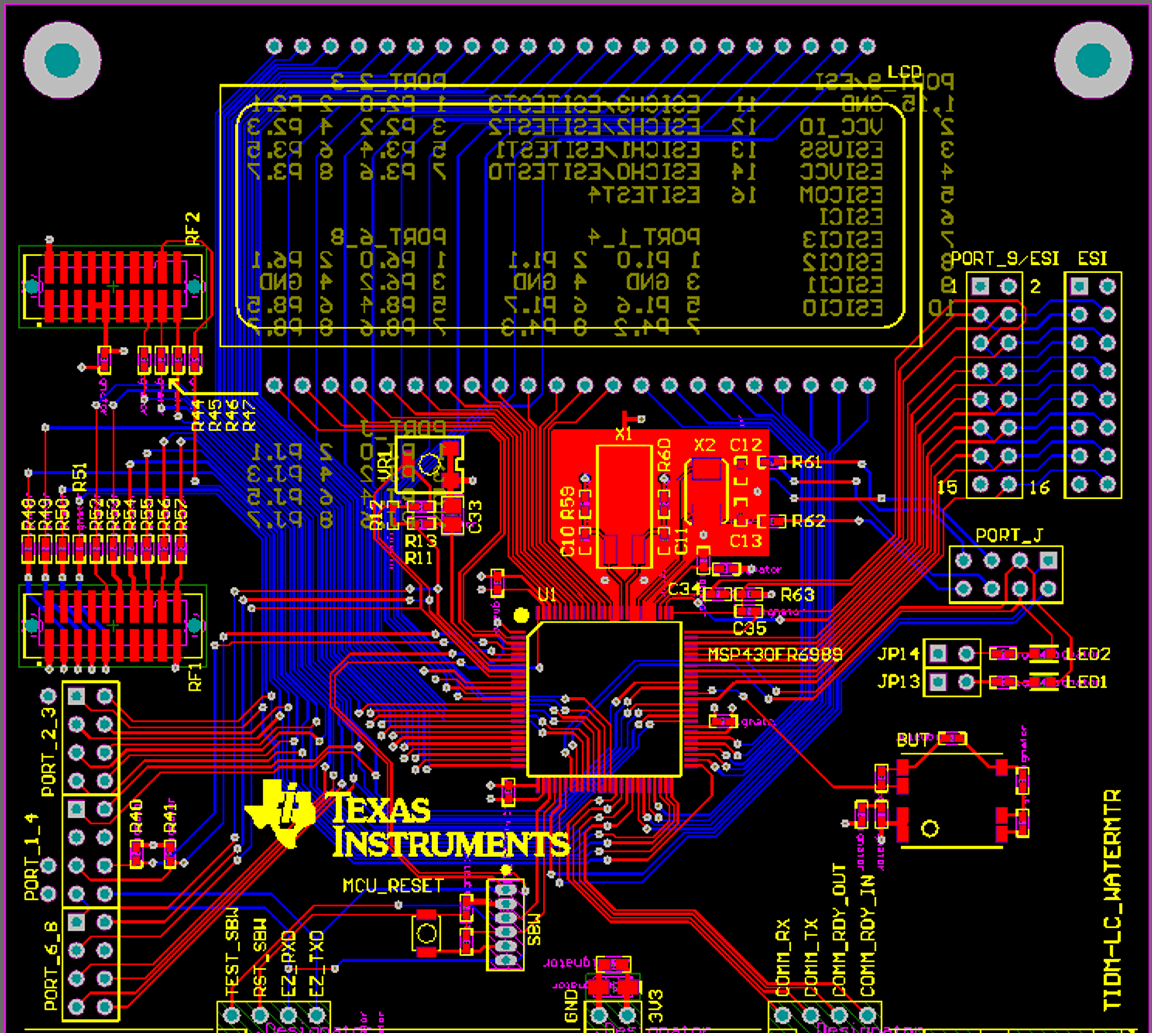

Figure 16 shows a portion of the water meter design showing the LCD connections. Note how the signals to the LCD at the top of the layout are grouped together, and go around the crystal oscillators X1 and X2 rather than under them to prevent noise from disturbing the crystals. The crystal circuitry also includes its own ground plane to help further shield them from noise from the LCD and other sources.

fig16_portion_watermtr.pngFigure 16. Portion of TIDM-LC-WATERMTR Design Showing LCD Layout
