5.1 System Needs More Power but PD Selects Lower Power PDOs

Assume there is a system that has the default settings discussed however the following are selected:

  • AUTO_NEGOTIATE_SINK.AutoNegMaxVoltage = 300d (15V)
  • AUTO_NEGOTIATE_SINK.AutoComputeSinkMaxVoltage = 0
  • AUTO_NEGOTIATE_SINK.ANSinkCapMismatchPower = 240d (60W)

When a USB-PD Source is connected that can meet the 60W requirement, the PD device always requests the 15V PDO contract and never goes higher. This is because at configuration (or set by the EC) the PD is being limited to 15V maximum. So regardless of the USB-PD Source offerings, the PD device never accepts more than 15V PDO.

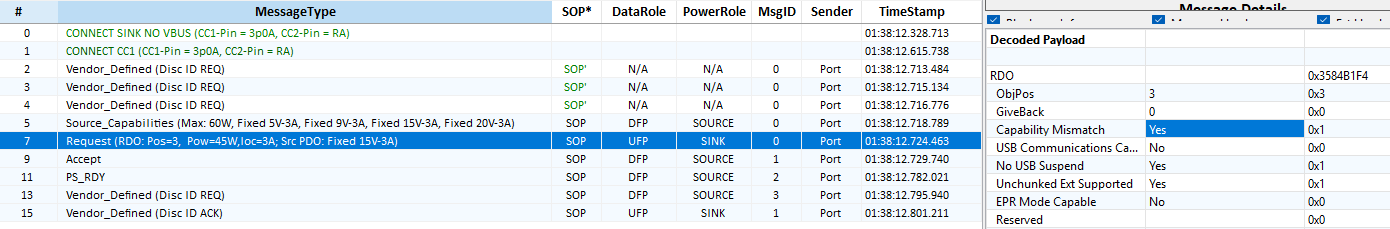

15V PDO Requested and 20V PDO Ignored Figure 5-1 15V PDO Requested and 20V PDO Ignored
