2.5 Troubleshooting

Problem Possible solutions
USB Communication Error
Error_usb.gifFigure 2-16 USB Communication Error
Verify the correct communication settings have been applied. Ensure the USB cable is connected both to the projector and computer.
I2C communication error
I2C_error.gifFigure 2-17 I2C communication error
Verify the correct communication settings have been applied. Ensure a DeVaSys box and the appropriate USB and I2C cables are connected.
Programming Mode error

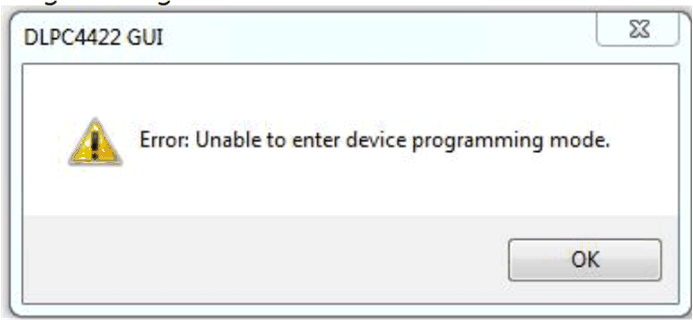

Programming_mode_error.gifFigure 2-18 Programming Mode error
Please check your connection settings and try again. Note: If this occurs only occasionally, increase the programming delay to 20000ms.

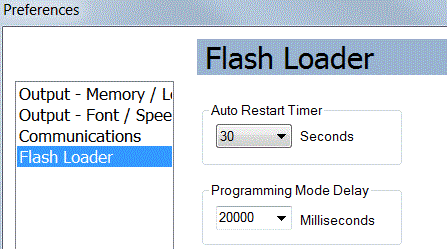

Programming_delay.gifFigure 2-19 Device programming delay increase
Tool bars or panels missing

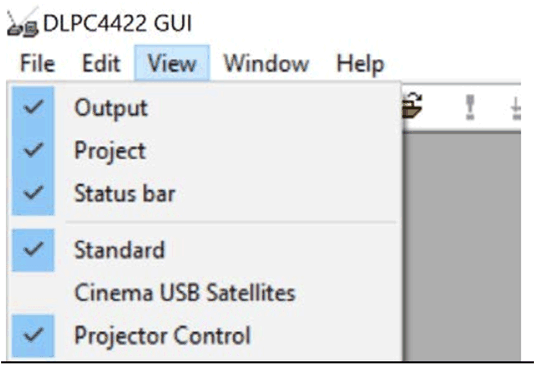

gui_toolbar.gifFigure 2-20 Tool bar and panel display settings
