12.2.1 UCD3138 and UCD3138064 40 Pin

GUID-731E697E-1F01-43B6-8FFF-352948F6EEC6-low.pngFigure 12-10 Power and Ground Schematic for UCD3138 and UCD3138064 40 Pin
Table 12-1 Power and Ground Connection Components for UCD3138 and UCD3138064 40 Pin
COMPONENTVALUE
C11 µF
C32.2 µF
R12.2 kΩ
C44.7 µF
C510 nF
C710 nF
C81 µF
C910 nF
C104.7 µF
R21 Ω
C1110 µF
C1210 µF
C132.2 µF
GUID-A8C15335-D5C3-4358-BD92-3C3B736C47B3-low.pngFigure 12-11 UCD3138 and UCD3138064 40 Pin Layout Top Layer

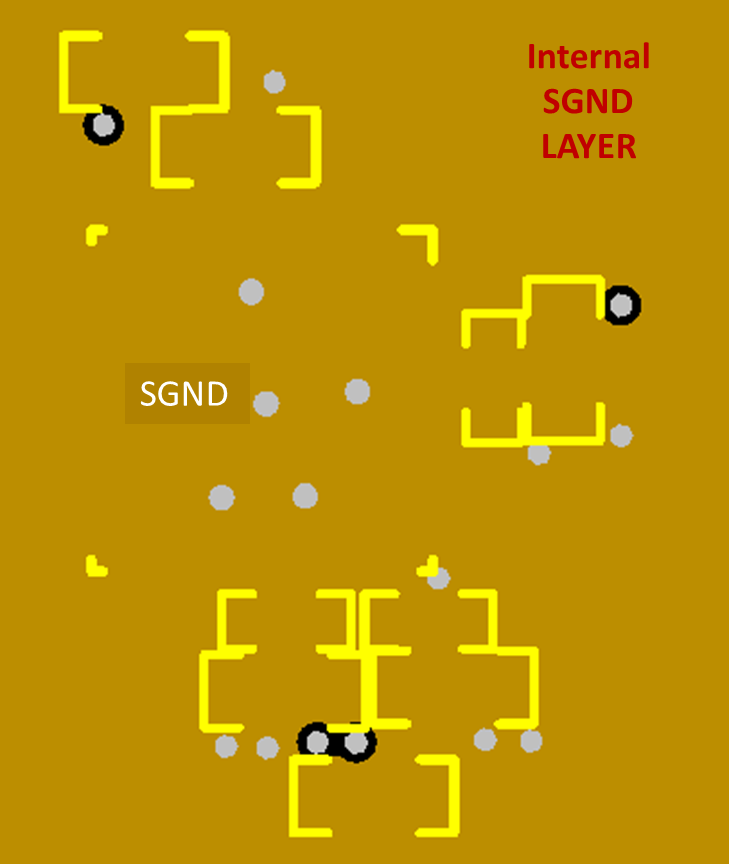

GUID-D4B8C5BA-0714-442B-A2A5-BD905763427F-low.pngFigure 12-12 UCD3138 and UCD3138064 40 Pin Layout Internal SGND Layer
