8.7 PMBus/SMBus/I2C Timing

The timing characteristics and timing diagram for the communications interface that supports I2C, SMBus, and PMBus in Slave or Master mode are shown in Table 8-1, Figure 8-1, and Figure 8-2. The numbers in Table 8-1 are for 400 kHz operating frequency. However, the device supports all three speeds, standard (100 kHz), fast (400 kHz), and fast mode plus (1 MHz).

Table 8-1 I2C/SMBus/PMBus Timing Characteristics
PARAMETERTEST CONDITIONSMINTYPMAXUNIT
Typical values at TA = 25 °C and VCC = 3.3 V (unless otherwise noted)
fSMBSMBus/PMBus operating frequencySlave mode, SMBC 50% duty cycle100400kHz
fI2CI2C operating frequencySlave mode, SCL 50% duty cycle100400kHz
t(BUF)Bus free time between start and stop(5)1.3µs
t(HD:STA)Hold time after (repeated) start(5)0.6µs
t(SU:STA)Repeated start setup time(5)0.6µs
t(SU:STO)Stop setup time(5)0.6µs
t(HD:DAT)Data hold timeReceive mode0ns
t(SU:DAT)Data setup time100ns
t(TIMEOUT)Error signal/detect(1)35ms
t(LOW)Clock low period1.3µs
t(HIGH)Clock high period(2)0.650µs
t(LOW:SEXT)Cumulative clock low slave extend time(3)25ms
tfClock/data fall timeFall time tf = 0.9 VDD to (VILmax – 0.15)20 + 0.1 Cb(4)300ns
trClock/data rise timeRise time tr = (VILmax – 0.15) to (VIHmin + 0.15)20 + 0.1 Cb(4)300ns
CbTotal capacitance of one bus line400pF
(1) The device times out when any clock low exceeds t(TIMEOUT).
(2) t(HIGH), Max, is the minimum bus idle time. SMBC = SMBD = 1 for t > 50 ms causes reset of any transaction that is in progress. This specification is valid when the NC_SMB control bit remains in the default cleared state (CLK[0] = 0).
(3) t(LOW:SEXT) is the cumulative time a slave device is allowed to extend the clock cycles in one message from initial start to the stop.
(4) Cb (pF)
(5) Fast mode, 400 kHz

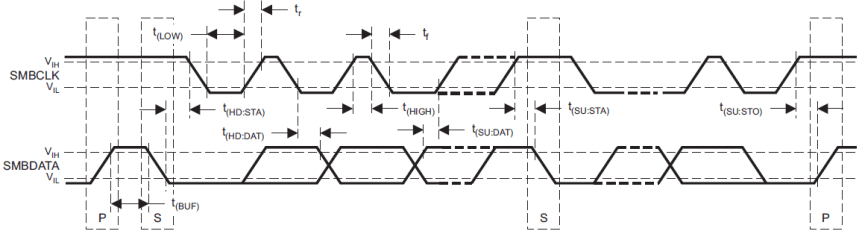

GUID-F1C8A291-911B-4483-8D18-8D78093103E9-low.gifFigure 8-1 I2C/SMBus/PMBus Timing Diagram
GUID-CC266622-101D-4583-98EC-BDA3C757E828-low.gifFigure 8-2 Bus Timing in Extended Mode
