8.8 Power On Reset (POR) / Brown Out Reset (BOR)

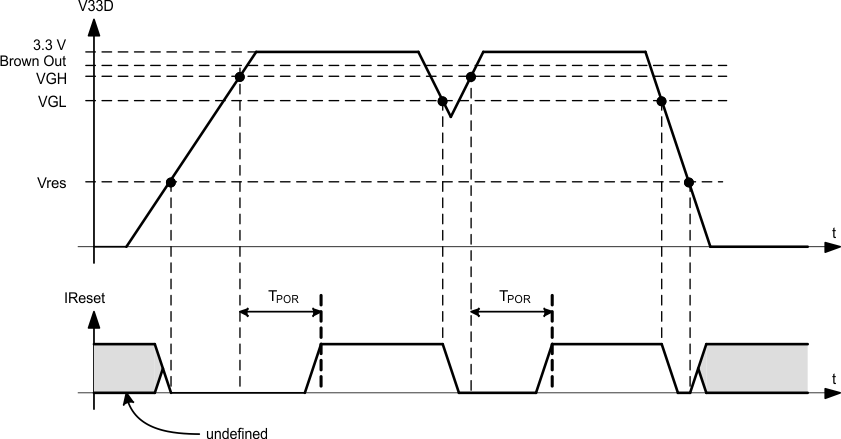

GUID-EBC736FB-8038-4463-B919-C8C61B712F41-low.gifFigure 8-3 Power On Reset (POR) / Brown Out Reset (BOR)
VGH–This is the V33A threshold where the internal power is declared good. The UCD3138064 comes out of reset when above this threshold.
VGL–This is the V33A threshold where the internal power is declared bad. The device goes into reset when below this threshold.
Vres–This is the V33A threshold where the internal reset signal is no longer valid. Below this threshold the device is in an indeterminate state.
IReset–This is the internal reset signal. When low, the device is held in reset. This is equivalent to holding the reset pin on the IC low.
TPOR–The time delay from when VGH is exceeded to when the device comes out of reset.
Brown Out–This is the V33A voltage threshold at which the device sets the brown out status bit. In addition an interrupt can be triggered if enabled.
