3 说明

UCC28740-Q1 隔离式反激电源控制器可使用光耦合器调节输出，以提供对大型负载阶跃的快速瞬态响应。

内部采用 700V 启动开关，可动态控制工作状态并定制调制配置文件，支持超低待机功耗，并且不会影响启动时间或输出瞬态响应。

UCC28740-Q1 中的控制算法可使操作效率达到或超过适用标准。驱动输出接至一个 MOSFET 电源开关。带有谷值开关的断续传导模式 (DCM) 减少了开关损耗。开关频率的调制和初级电流峰值振幅（FM 和 AM）在整个负载和线路范围内保持较高的转换效率。

此控制器有一个 100kHz 的最大开关频率并且一直保持对变压器内峰值初级电流的控制。保护特性可抑制初级和次级应力分量。170kHz 的最小开关频率可轻松实现少于 10mW 无负载功耗。

器件信息(1)
器件型号封装封装尺寸（标称值）
UCC28740-Q1SOIC (7)4.90mm × 3.91mm
(1) 如需了解所有可用封装，请参阅数据表末尾的可订购产品附录。

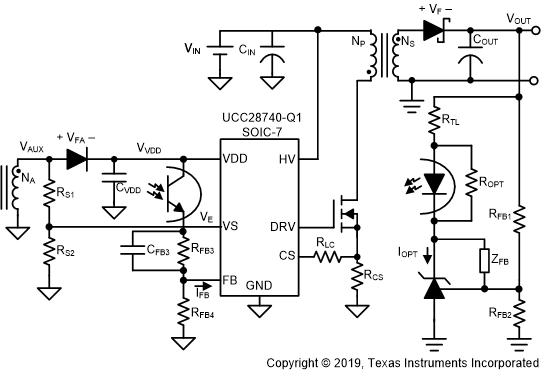

GUID-4A71C0DF-D674-4E76-BF46-45545EBAE9E2-low.gif简化版应用示意图

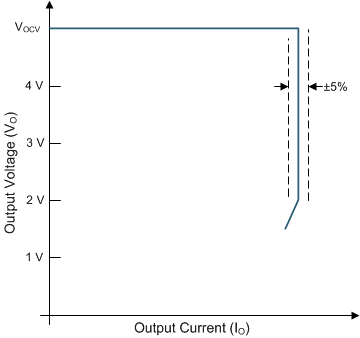

GUID-813E7E60-1195-471E-8259-AB1F3C83557E-low.gif典型伏安图
