Noise Immunity

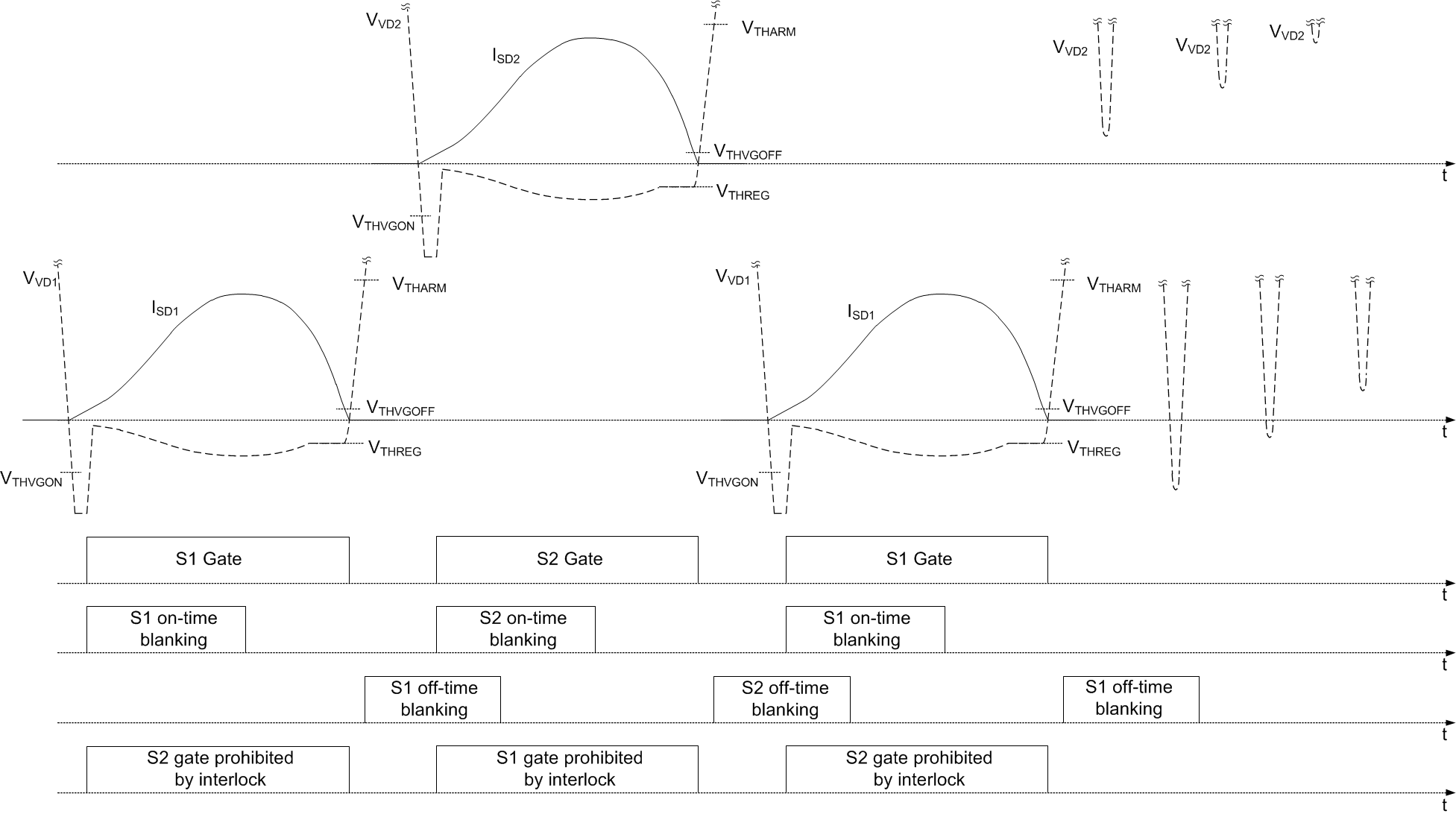

To ensure reliable SR operation and to avoid false turn-on and turn-off, features such as blanking time, adaptive turn-on delay, and interlock logic are implemented. As illustrated in Figure 8-7, the SR control is blanked by the on-time blanking, off-time blanking and two-channel interlock logic.

GUID-1EAC441B-DD22-42F8-83C0-1B2BD3D0E31C-low.gif Figure 8-7 Blanking Time and Interlock Logic in UCC24624
