6.8 Typical Characteristics

TS3L110 gn_phs_cds176.gif
Phase at 627 MHz, −36 Deg
Gain −3 dB at 627 MHz
Figure 1. Gain and Phase vs Frequency

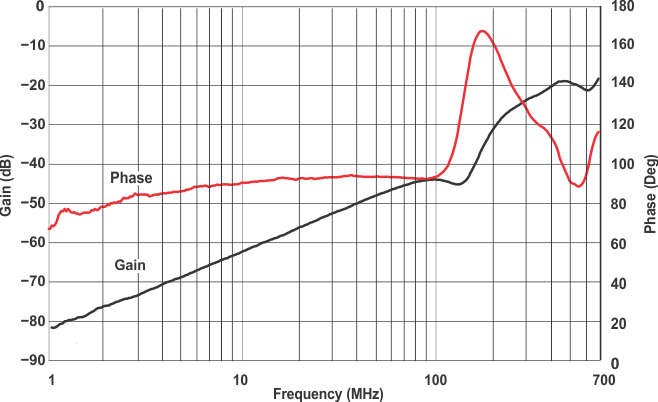

TS3L110 crs_v_fre_cds176.gif
Phase at 250 MHz, 137.92 Deg
Gain −26 dB at 250 MHZ
Figure 3. Crosstalk vs Frequency
TS3L110 offiso_v_fre_cds176.gif
Phase at 250 MHz, 88.2 Deg
Gain −28.5 dB at 250 MHz
Figure 2. OFF Isolation vs Frequency
TS3L110 ovol_nvol_cds176.gif
Figure 4. Output Voltage and ON-State Resistance vs Input Voltage
