5 Pin Configuration and Functions

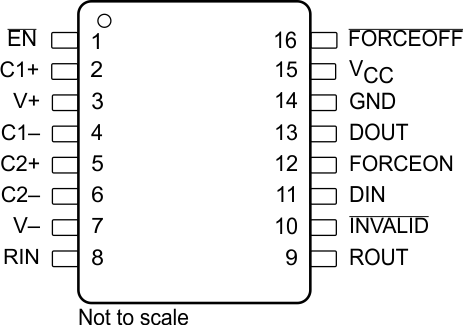

GUID-20200910-CA0I-MJRW-XDBC-TKFRZCLPKF4V-low.gifDB or PW Package. 16 Pins (Top View)
GUID-20200910-CA0I-CQ3J-CHCF-QZFXBJ35NF5T-low.gifRGT, VSON Package, 16 Pins (Top View)
Table 5-1 Pin Functions
PIN I/O(1) DESCRIPTION
NAME DB or PW

RGT
EN 1 14 --
C1+ 2 16 - Positive lead of C1 capacitor
V+ 3 15 O Positive charge pump output for storage capacitor only
C1- 4 1 - Negative lead of C1 capacitor
C2+ 5

2

 - Positive lead of C2 capacitor
C2- 6 3 - Negative lead of C2 capacitor
V- 7 4 O Negative charge pump output for storage capacitor only
RIN 8 5 I RS232 line data input (from remote RS232 system)
ROUT 9 6 O Logic data output (to UART)
INVALID 10 7
DIN 11 8 I Logic data input (from UART)
FORCEON 12 9
DOUT 13 10 O RS232 line data output (to remote RS232 system)
GRD 14 11 - Ground
VCC 15 12 - Supply Voltage, Connect to external 3-V to 5.5-V power supply
FORCEOFF 16 13
Thermal Pad - Yes - Exposed thermal pad. Can be connected to GND or left floating.
(1) Signal Types: I = Input, O = Output, I/O = Input or Output.
