6 Parameter Measurement Information
A. The pulse generator has the
following characteristics: ZO = 50Ω, duty cycle ≤ 50%.
B. CL includes probe and
jig capacitance.
C. All diodes are 1N3064 or
equivalent.

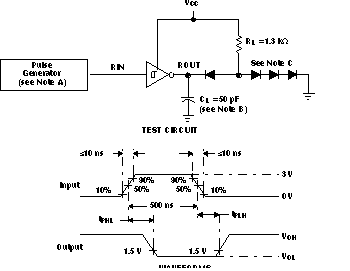

Figure 6-1 Receiver
Test Circuit and Waveforms for tPHL and tPLH
Measurements
A. The pulse generator has the
following characteristics: ZO = 50Ω, duty cycle ≤ 50%.
B. CL includes probe and
jig capacitance.

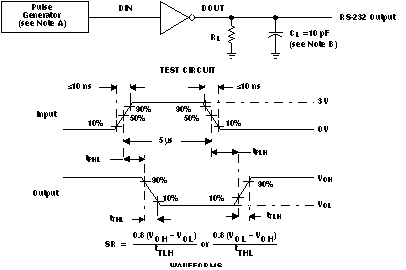

Figure 6-2 Driver
Test Circuit and Waveforms for tPHL and tPLH Measurements
(5μs Input)
A. The pulse generator has the
following characteristics: ZO = 50Ω, duty cycle ≤ 50%.

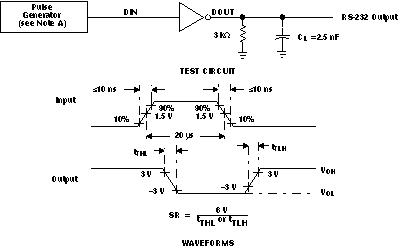

Figure 6-3 Test
Circuit and Waveforms for tTHL and tTLH Measurements (20μs
Input)
