Typical Characteristics: TPS7A8401A

at TA = 25°C, VIN = 1.4 V or VIN = VOUT(nom) + 0.4 V (whichever is greater), VBIAS = open, VOUT(nom) = 0.5 V, VEN = 1.1 V, CIN = 10 μF, COUT = 47 μF, CNR/SS = 0 nF, no CFF, and PG pin pulled up to VIN with 100 kΩ (unless otherwise noted)

VIN = 1.1 V, VBIAS = 5 V, COUT = 47 μF || 10 μF || 10 μF,
CNR/SS = 10 nF, CFF = 10 nF
Figure 6-43 PSRR vs Frequency and IOUT
VIN = 1.4 V, IOUT = 1 A, COUT = 47 μF || 10 μF || 10 μF,
CNR/SS = 10 nF, CFF = 10 nF
Figure 6-45 PSRR vs Frequency and VBIAS
VIN = VOUT + 0.3 V or VIN = 1.1 V (whichever is greater), VBIAS = 5 V, IOUT = 3 A, COUT = 47 μF || 10 μF || 10 μF,
CNR/SS = 10 nF, CFF = 10 nF
Figure 6-47 PSRR vs Frequency and VOUT With Bias
VIN = 1.4 V, VBIAS = 5 V, VOUT = 1 V, IOUT = 3 A,
CNR/SS = 10 nF, CFF = 10 nF
Figure 6-49 PSRR vs Frequency and COUT
VIN = 5.5 V, VOUT = 5 V, IOUT = 3 A, COUT = 47 μF || 10 μF || 10 μF, CNR/SS = 10 nF, CFF = 10 nF
Figure 6-51 PSRR vs Frequency and IOUT
(VOUT = 5 V)
VIN = VOUT + 0.3 V or VIN = 1.1 V (whichever is greater), VBIAS = 5 V for VIN ≤ 2.2 V, COUT = 47 μF || 10 μF || 10 μF, CNR/SS = 10 nF, CFF = 10 nF, RMS noise BW = 10 Hz to 100 kHz

Figure 6-53 Output Voltage Noise vs VOUT
VOUT = 0.7 V, IOUT = 3 A, COUT = 47 μF || 10 μF || 10 μF, CNR/SS = 10 nF, CFF = 10 nF, RMS noise BW = 10 Hz to 100 kHz
Figure 6-55 Output Noise vs Frequency and VIN
VOUT = 0.7 V, VIN = 1.1 V, VBIAS = 5 V, IOUT = 3 A, COUT = 47 μF || 10 μF || 10 μF, CNR/SS = 10 nF, RMS noise BW = 10 Hz to 100 kHz
Figure 6-57 Output Noise vs Frequency and CFF
VIN = 1.2 V, VOUT = 0.7 V, VBIAS = 5 V, IOUT = 3 A,
COUT = 47 μF || 10 μF || 10 μF, CFF = 10 nF

Figure 6-59 Start-Up Waveform vs Time and CNR/SS
VIN = VOUT + 0.5 V, VBIAS = 5 V, IOUT = 3 A to 100 mA,
slew rate = 1 A/μs, CNR/SS = CFF = 10 nF,
COUT = 47 μF || 10 μF || 10 μF
Figure 6-61 Load Transient vs Time and VOUT With Bias
VIN = VOUT + 0.5 V, VOUT = 0.7 V, IOUT = 3 A to 100 mA,
COUT = 47 μF || 10 μF || 10 μF, CNR/SS = CFF = 10 nF, slew rate = 1 A/μs
Figure 6-63 Load Transient vs Time and VOUT Without Bias
VIN = 1.2 V, VOUT = 0.7 V, VBIAS = 5 V, slew rate = 1 A/μs,
COUT = 47 μF || 10 μF || 10 μF, CNR/SS = CFF = 10 nF
Figure 6-65 Load Transient vs Time and DC Load

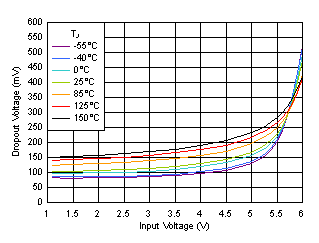

IOUT = 3 A, VBIAS = 5.0 V
Figure 6-67 Dropout Voltage vs VIN With Bias

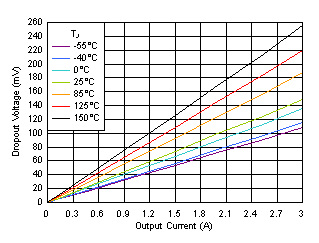

VIN = 1.1 V, VBIAS = 5.0 V
Figure 6-69 Dropout Voltage vs IOUT With Bias
IOUT = 100 mA to 3 A
Figure 6-71 Load Regulation vs VOUT
VIN = 3.8 V
Figure 6-73 Load Regulation vs IOUT (3.3-V Output)
VOUT = 0.5 V, IOUT = 5 mA
Figure 6-75 Line Regulation vs VIN

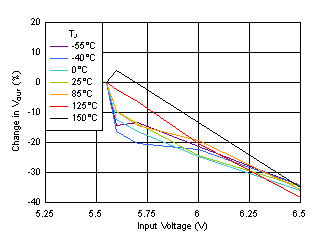

IOUT = 5 mA
Figure 6-77 Line Regulation vs VIN (5.15-V Output)

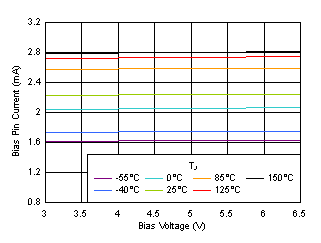

VIN = 1.1 V, IOUT = 5 mA
Figure 6-79 Bias Pin Current With Bias
VIN = 1.1 V
Figure 6-81 Shutdown Current vs VIN With Bias

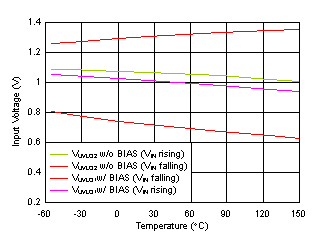

Figure 6-83 VIN UVLO vs Temperature

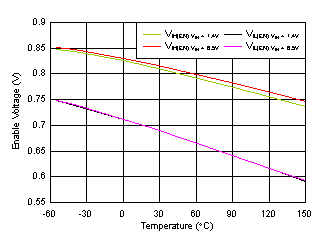

VIN = 1.4 V, 6.5 V
Figure 6-85 Enable Threshold vs Temperature
VIN = 6.5 V
Figure 6-87 PG Voltage vs PG Current Sink

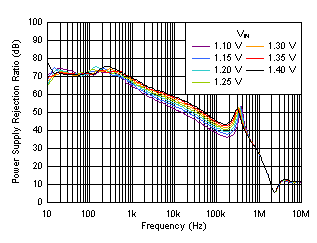

IOUT = 3 A, VBIAS = 5 V, COUT = 47 μF || 10 μF || 10 μF,
CNR/SS = 10 nF, CFF = 10 nF
Figure 6-44 PSRR vs Frequency and VIN With Bias
IOUT = 1 A, COUT = 47 μF || 10 μF || 10 μF, CNR/SS = 10 nF,
CFF = 10 nF
Figure 6-46 PSRR vs Frequency and VIN

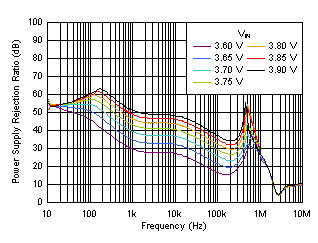

IOUT = 3 A, COUT = 47 μF || 10 μF || 10 μF, CNR/SS = 10 nF,
CFF = 10 nF

Figure 6-48 PSRR vs Frequency and VIN
(VOUT = 3.3 V)
VOUT = 5 V, IOUT = 3 A, COUT = 47 μF || 10 μF || 10 μF,
CNR/SS = 10 nF, CFF = 10 nF
Figure 6-50 PSRR vs Frequency and VIN
(VOUT = 5 V)
VIN = VOUT + 0.3 V, VOUT = 1 V, IOUT = 3 A, COUT = 47 μF || 10 μF || 10 μF, CNR/SS = 10 nF, CFF = 10 nF
Figure 6-52 VBIAS PSRR vs Frequency
VIN = VOUT + 0.3 V or VIN = 1.1 V (whichever is greater), VBIAS = 5 V for VIN ≤ 2.2 V, IOUT = 3 A, COUT = 47 μF || 10 μF || 10 μF, CNR/SS = 10 nF, CFF = 10 nF, RMS noise BW = 10 Hz to 100 kHz
Figure 6-54 Output Noise vs Frequency and VOUT
VOUT = 0.7 V, VIN = 1.1 V, VBIAS = 5 V, IOUT = 3 A, COUT = 47 μF || 10 μF || 10 μF, CFF = 10 nF, RMS noise BW = 10 Hz to 100 kHz
Figure 6-56 Output Noise vs Frequency and CNR/SS
VIN = VOUT + 0.3 V, VBIAS = 5 V, IOUT = 3 A, COUT = 47 μF || 10 μF || 10 μF, CFF = 10 nF, RMS noise BW = 10 Hz to 100 kHz
Figure 6-58 Output Noise vs Frequency
(5-V Output)
VIN = VOUT + 0.5 V, VBIAS = 5 V, IOUT = 100 mA to 3 A,
slew rate = 1 A/μs, CNR/SS = CFF = 10 nF,
COUT = 47 μF || 10 μF || 10 μF
Figure 6-60 Load Transient vs Time and VOUT With Bias
VIN = VOUT + 0.5 V, VOUT = 0.7 V, IOUT = 100 mA to 3 A,
COUT = 47 μF || 10 μF || 10 μF, CNR/SS = CFF = 10 nF, slew rate = 1 A/μs
Figure 6-62 Load Transient vs Time and VOUT Without Bias

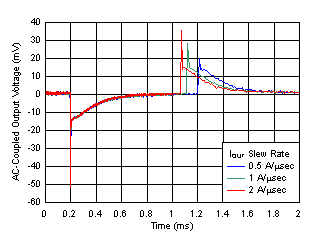

VOUT = 5 V, IOUT, DC = 100 mA, IOUT = 100 mA to 3 A,
COUT = 47 μF || 10 μF || 10 μF, CNR/SS = CFF = 10 nF
Figure 6-64 Load Transient vs Time and Slew Rate
IOUT = 3 A

Figure 6-66 Dropout Voltage vs VIN Without Bias
VIN = 1.4 V
Figure 6-68 Dropout Voltage vs IOUT Without Bias
VIN = 5.6 V
Figure 6-70 Dropout Voltage vs IOUT (High VIN)

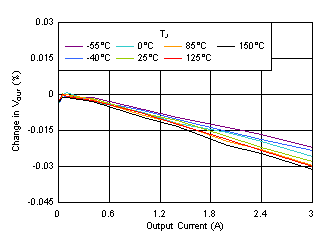

VIN = 1.4 V
Figure 6-72 Load Regulation vs IOUT
VIN = 5.55 V, VOUT = 5.15 V
Figure 6-74 Load Regulation vs IOUT (5-V Output)
VOUT = 0.5 V, VIN = 1.1 V, IOUT = 5 mA
Figure 6-76 Line Regulation With Bias

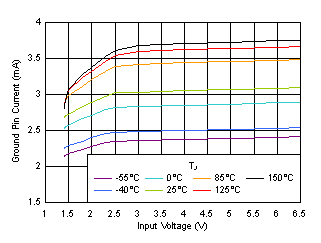

VBIAS = 0 V, IOUT = 5 mA
Figure 6-78 Ground Pin Current vs VIN

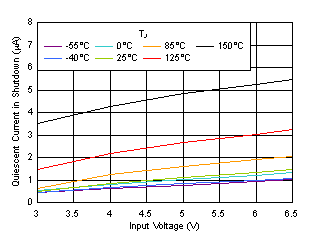

VBIAS = 0 V
Figure 6-80 Shutdown Current vs VIN

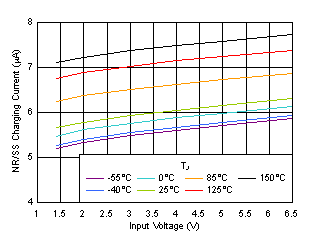

VBIAS = 0 V
Figure 6-82 INR/SS Current vs VIN
VIN = 1.1 V
Figure 6-84 VBIAS UVLO vs Temperature

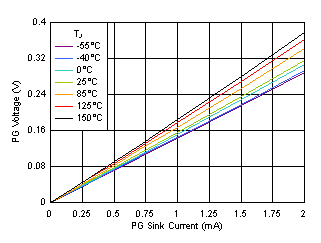

VIN = 1.4V
Figure 6-86 PG Voltage vs PG Current Sink

Figure 6-88 PG Threshold vs Temperature
