Typical Characteristics

over operating temperature range (TJ= –40°C to +125°C), VIN = VOUT(nom) + 0.5 V or 2.7 V, whichever is greater; IOUT = 1 mA, VEN = VIN,COUT = 2.2 μF, CNR = 10 nF. Typical values are at TJ = 25°C, (unless otherwise noted).

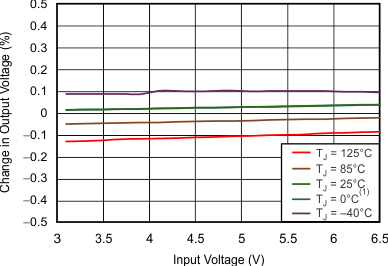

TPS735 tc_line_reg_73501_sbvs252.gif
Results for TJ = 0°C are similar to TJ = 25°C.
IOUT = 100 mA
Figure 1. TPS735 Line Regulation
TPS735 tc_load_reg_73501_sbvs252.gif
The y-axis range is ±2% of 2.8 V
Figure 3. TPS735 Load Regulation
TPS735 tc_ignd_iout_sbvs252.gif
Figure 5. TPS735 Ground Pin Current vs
Output Current
TPS735 tc_dropout_volt_vs_output_current_bvs087.gif
VEN = 0.4 V
Figure 7. TPS735 Dropout Voltage vs Output Current

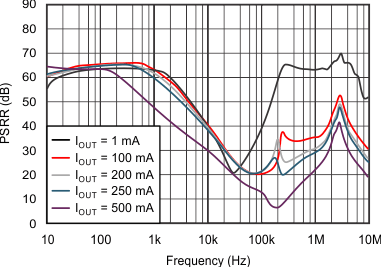

TPS735 tc_psrr_fqcy_05v_sbvs252.gif
(VIN – VOUT = 0.5 V)
Figure 9. Power-Supply Ripple Rejection vs Frequency
TPS735 tc_noise_cnr_sbvs252.gif
Figure 11. TPS73525 RMS Noise vs CNR

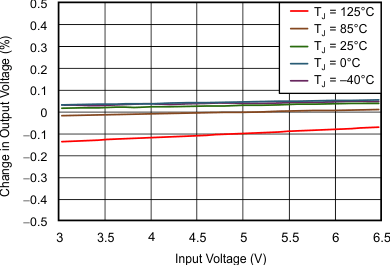

TPS735 tc_line_reg_73525_sbvs252.gif
IOUT = 100 mA
Figure 2. TPS735 Line Regulation
TPS735 tc_load_reg_73525_sbvs252.gif
The y-axis range is ±2% of 2.5 V
Figure 4. TPS735 Load Regulation
TPS735 tc_ignd_disable_temp_sbvs252.gif
Figure 6. TPS735 Ground Pin Current (Disable) vs Temperature
TPS735 tc_psrr_fqcy_1v_sbvs252.gif
(VIN – VOUT = 1 V)
Figure 8. Power-Supply Ripple Rejection vs Frequency

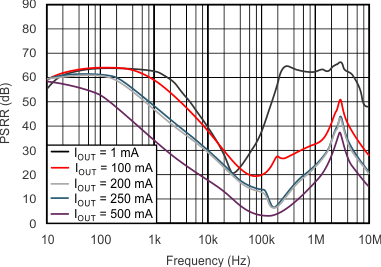

TPS735 tc_psrr_fqcy_03v_sbvs252.gif
(VIN – VOUT = 0.3 V)
Figure 10. Power-Supply Ripple Rejection vs Frequency

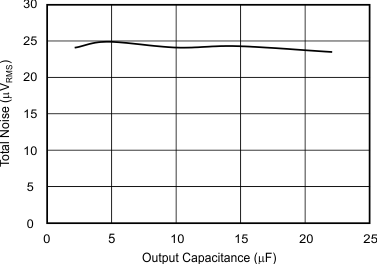

TPS735 tc_noise_cout_sbvs252.gif
CNR = 0.01 µF, IOUT = 1 mA
Figure 12. TPS735 RMS Noise vs COUT
