6 Pin Configuration and Functions

A. Thermal pad must be soldered to PCB as SW3 and SW4 power ground.

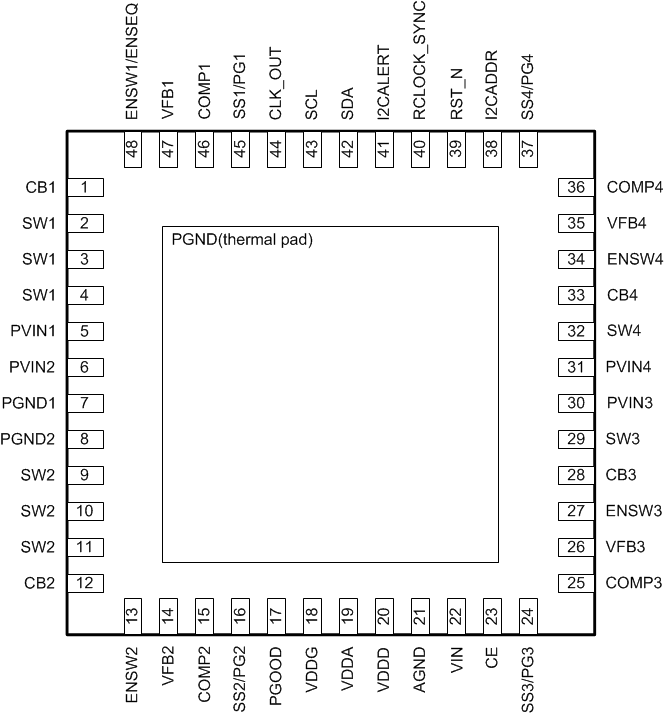

Figure 6-1 48-Pin VQFNRGZ Package(Top View)
Table 6-1 Pin Functions
PIN DESCRIPTION
NAME NO.
CB1 1 Bootstrap pin for the high-side MOSFET gate drive for SW1
SW1 2 Switch pin for SW1
3
4
PVIN1 5 Power input for the buck switching regulator SW1
PVIN2 6 Power input for SW2
PGND1 7 Power ground for buck converters
PGND2 8 Power ground for buck converters
SW2 9 Switch pin for SW2
10
11
CB2 12 Bootstrap pin for the SW2 high-side MOSFET gate drive
ENSW2 13 Enable input pin for SW2. Active high. A 2-µA internal pullup current is inside.
VFB2 14 Feedback input pin for SW2
COMP2 15 Compensation pin for external compensation network for SW2. Pulling this line high to VDDA configures the SW1 controller to control both SW1 and SW2.
SS2/PG2 16 Soft start for SW2 (default). A capacitor is used to set the start-up time. This pin can also be reconfigured through I2C to display the PGOOD2 signal instead.
PGOOD 17 Default PGOOD signal is for all switchers. It can be changed according to (D2h) PIN_CONFIG_00. If all switchers are disabled, PGOOD is low.
VDDG 18 Supply for gate drives. Bypass locally to PGND.
VDDA 19 Output of internal regulator for analog controls
VDDD 20 3.3-V output of internal regulator digital controls
AGND 21 Ground connection for analog controls
VIN 22 Analog VIN. Power input pin for the VDDD, VDDA, and VGATE subregulator power
CE 23 Chip enables. Internal pullup current will default to high if the pin is left floating. Connect to an open-drain output to pull low to disable. Driving with a push-pull output is not recommended. When low, internal regulators are shutdown to minimize power, and functions are disabled. Configuration is reloaded from EEPROM as part of the power-up sequence when CE goes high.
SS3/PG3 24 Soft-start for SW3 (default). A capacitor is used to set the startup time. This pin can also be reconfigured through I2C to display the PGOOD3 signal instead.
COMP3 25 Compensation pin for external compensation network for SW3
VFB3 26 Feedback input pin for SW3
ENSW3 27 Enable input pin for SW3. Active high. A 2-µA internal pullup current is inside.
CB3 28 Bootstrap pin for SW3 high-side MOSFET gate drive
SW3 29 Switch pin for SW3. The maximum rated output current is 2 A.
PVIN3 30 Power input for buck switching regulator SW3
PVIN4 31 Power input for SW4
SW4 32 Switch pin for SW4. The maximum rated output current is 2 A.
CB4 33 Bootstrap pin for SW4 high-side MOSFET gate drive
ENSW4 34 Enable input pin for SW4. Active high. A 2-µA internal pullup current is inside.
VFB4 35 Feedback input pin for SW4
COMP4 36 Compensation pin for external compensation network for SW4. Pulling this line high to VDDA configures the SW3 controller to control both SW3 and SW4.
SS4/PG4 37 Soft start for SW4 (default). A capacitor is used to set the start-up time. This pin can also be reconfigured through I2C to display the PGOOD4 signal instead.
I2CADDR 38 Select I2C address with a resistor to AGND.
RST_N 39 Reset of digital logic. When low, all switchers are disabled. Configuration is reloaded from EEPROM when RESET_N is deasserted.
RCLOCK_SYNC 40 Resistor for setting primary clock frequency from 275 kHz to 2.2 MHz or for clock sync
I2CALERT 41 Open-drain output that is pulled low for 200 µs when a timeout condition is detected by the I2C watchdog on either SDA or SCL.
SDA 42 Data input/output pin for I2C bus
SCL 43 Clock input pin for I2C bus
CLK_OUT 44 Clock output signal. Open-collector output, requires pull up
SS1/PG1 45 Soft start for SW1 (default). A capacitor is used to set the start-up time. This pin can also be reconfigured through I2C to display the PGOOD1 signal instead.
COMP1 46 Compensation pin for external compensation network for SW1
VFB1 47 Feedback input pin for SW1
ENSW1/ENSEQ 48 Enable input pin for SW1. Active high. A 2-µA internal pullup current is inside.
