8.2.3 Application Curves

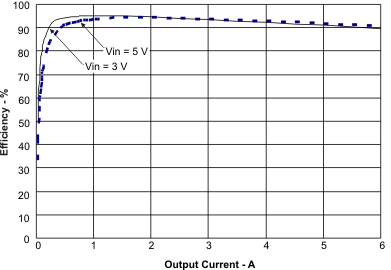

TPS54618 eff_cur_lvsae9.gif
Figure 40. Efficiency vs Load Current

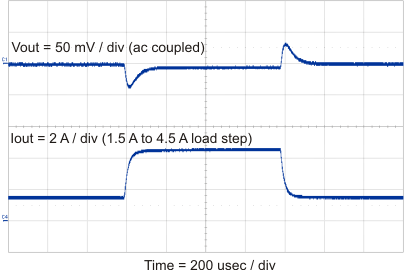

TPS54618 transient_lvsae9.gif
1-A Load Step
Figure 42. Transient Response
TPS54618 Start_en_lvsae9.gif
Figure 44. Power Up, VOUT, EN
TPS54618 Vin_rip_lvsae9.gif
IOUT = 2A
Figure 46. Input Ripple

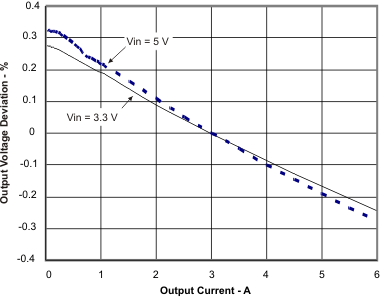

TPS54618 reg_cur_lvsae9.gif
Figure 48. Load Regulation vs Load Current

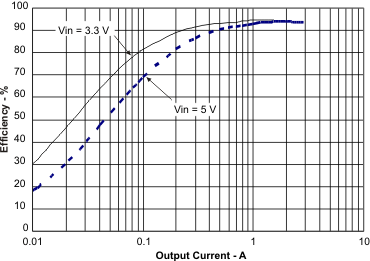

TPS54618 eff2_cur_lvsae9.gif
Figure 41. Efficiency vs Load Current
TPS54618 ST_VIN_lvsae9.gif
Figure 43. Power Up, VOUT, VIN
TPS54618 Vout_rip_lvsae9.gif
IOUT = 0 A
Figure 45. Output Ripple
TPS54618 loop_resp_lvsae9.gif
VIN = 3.3. V IOUT = 2 A
Figure 47. Closed-Loop Response

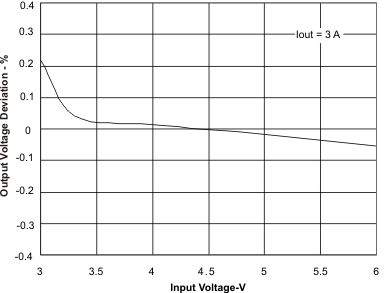

TPS54618 reg_vi_lvsae9.gif
Figure 49. Regulation vs Input Voltage
