8.2 Typical Application

This section details a high-frequency, 1.8-V output power supply design application with adjusted UVLO.

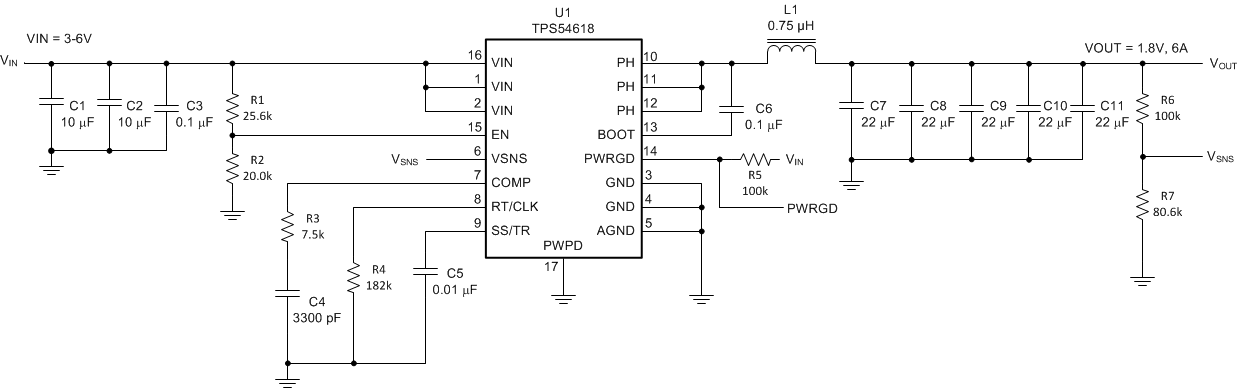

TPS54618 EVM_Schematic.gifFigure 39. Typical Application Schematic TPS54618
