Small Signal Model for Frequency Compensation

The TPS54618 uses a transconductance amplifier for the error amplifier and readily supports two of the commonly used frequency compensation circuits. The compensation circuits are shown in Figure 38. The Type 2 circuits are most likely implemented in high-bandwidth power supply designs using low ESR output capacitors. In Type 2A, one additional high-frequency pole is added to attenuate high-frequency noise.

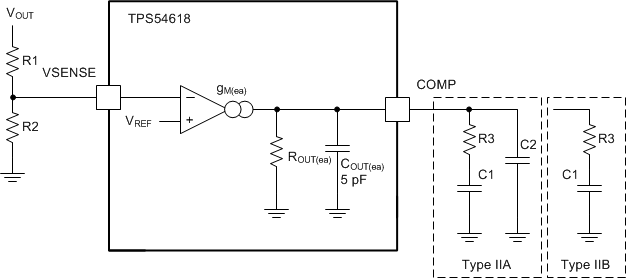

TPS54618 ai_freq_comp_slvsae9.gifFigure 38. Types of Frequency Compensation

The design guidelines for TPS54618 loop compensation are as follows:

  1. The modulator pole, fpmod, and the esr zero, fz1, must be calculated using Equation 15 and Equation 16. Derating the output capacitor (COUT) may be needed if the output voltage is a high percentage of the capacitor rating. Use the capacitor manufacturer information to derate the capacitor value. Use Equation 17 and Equation 18 to estimate a starting point for the crossover frequency, fc. Equation 17 is the geometric mean of the modulator pole and the esr zero and Equation 18 is the mean of modulator pole and the switching frequency. Use the lower value of Equation 17 or Equation 18 as the maximum crossover frequency.
  2. Equation 15. TPS54618 comp_eq1_lvs946.gif

    space

    Equation 16. TPS54618 comp_eq2_lvs946.gif

    space

    Equation 17. TPS54618 comp_eq3_lvs946.gif

    space

    Equation 18. TPS54618 comp_eq4_lvs946.gif

    space

  3. R3 can be determined by Equation 19:
  4. Equation 19. TPS54618 eq09_r3_lvs946.gif

    where

    • the gmea amplifier gain (245 μA/V)
    • gmps is the power stage gain (25 A/V)

    vertical spacer

  5. Place a compensation zero at the dominant pole:
    TPS54618 elq1_fp_lvs946.gif
    C1 can be determined by Equation 20:
  6. Equation 20. TPS54618 eq10_c1_lvs946.gif

    space

  7. C2 is optional. It can be used to cancel the zero from the ESR of COUT.
  8. Equation 21. TPS54618 eq11_c2_lvs946.gif
