Switching Frequency and Synchronization (RT/SYNC)

The switching frequency of the TPS2584x-Q1 can be programmed by the resistor RT from the RT/SYNC pin and GND pin. Use Equation 3 to determine the RT resistance for a given switching frequency.

Equation 3. GUID-6FC3538B-5D96-4081-83BC-9969D8121B19-low.gif
GUID-92554BBE-5E0B-44E8-9742-C7C1E36314AA-low.gifFigure 10-6 RT Set Resistor vs Switching Frequency

Table 10-1 lists typical RT resistors values.

Table 10-1 Setting the Switching Frequency With RT
RT (kΩ)SWITCHING FREQUENCY (kHz)
68.1300
49.9400
39.2500
19.11000
12.41500
9.312000
8.872100
8.452200

TPS2584x-Q1 switching action can be synchronized to an external clock from 300 kHz to 2.3 MHz. The RT/SYNC pin can be used to synchronize the internal oscillator to an external clock. The internal oscillator can be synchronized by AC coupling a positive edge into the RT/SYNC pin. The AC coupled peak-to-peak voltage at the RT/SYNC pin must exceed the SYNC amplitude threshold of 3.5 V (typical) to trip the internal synchronization pulse detector, and the minimum SYNC clock ON and OFF time must be longer than 100 ns (typical). When using a low impedance signal source, the frequency setting resistor, RT, is connected in parallel with an AC coupling capacitor, CCOUP, to a termination resistor, RTERM (for example: 50 Ω). The two resistors in series provide the default frequency setting resistance when the signal source is turned off. A 10-pF ceramic capacitor can be used for CCOUP. Figure 10-7 show the device synchronized to an external clock.

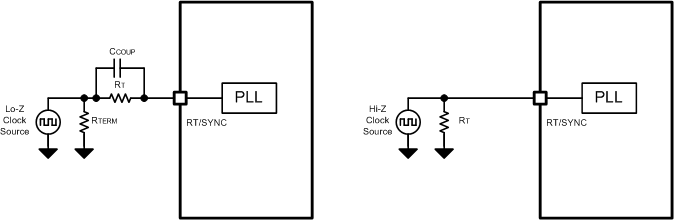

GUID-576B4FF0-80C4-445A-99BD-21B8E4FBABB9-low.gifFigure 10-7 Synchronize to External Clock

To avoid AM radio frequency brand and maintain proper regulation when minimum ON-time or minimum OFF-time is reached, the TPS2584x-Q1 implement frequency foldback scheme depends on VIN voltage. Refer to Figure 8-10.

  • When 8 V < VIN ≤ 19 V, the switching frequency of TPS2584x-Q1 is determined by RT resistor or external sync clock.
  • When VIN ≤ 8 V, the switching frequency of TPS2584x-Q1 is set to default 420 kHz, regardless of RT resistor setting or external sync clock.
  • When VIN > 19 V, the switching frequency of TPS2584x-Q1 is set to default 420 kHz, regardless of RT resistor setting or external sync clock.

figure 10-8, figure 10-9 and Figure 10-10 show the device switching frequency and behavior under different VIN voltage and RT = 8.87 kΩ.

Figure 10-11, Figure 10-12 and Figure 10-13 show the device switching frequency and behavior under different VIN voltage and synchronized to an external 2.1-M system clock.

VIN = 7.5 V L = 2.2 uH ILOAD = 3 A

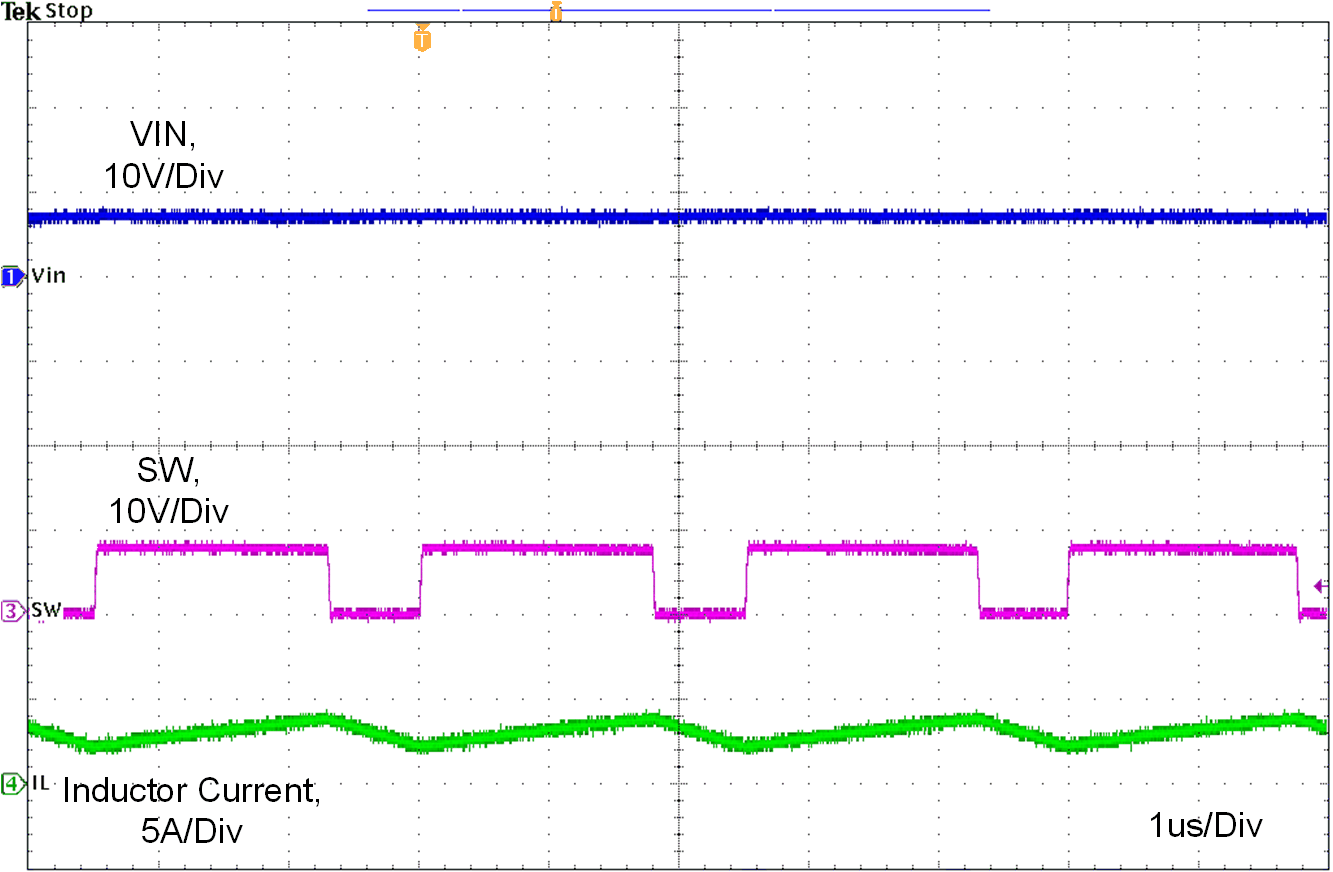

Figure 10-8 Switching Frequency When RT = 8.87 kΩ
VIN = 20 V L = 2.2 uH ILOAD = 3 A

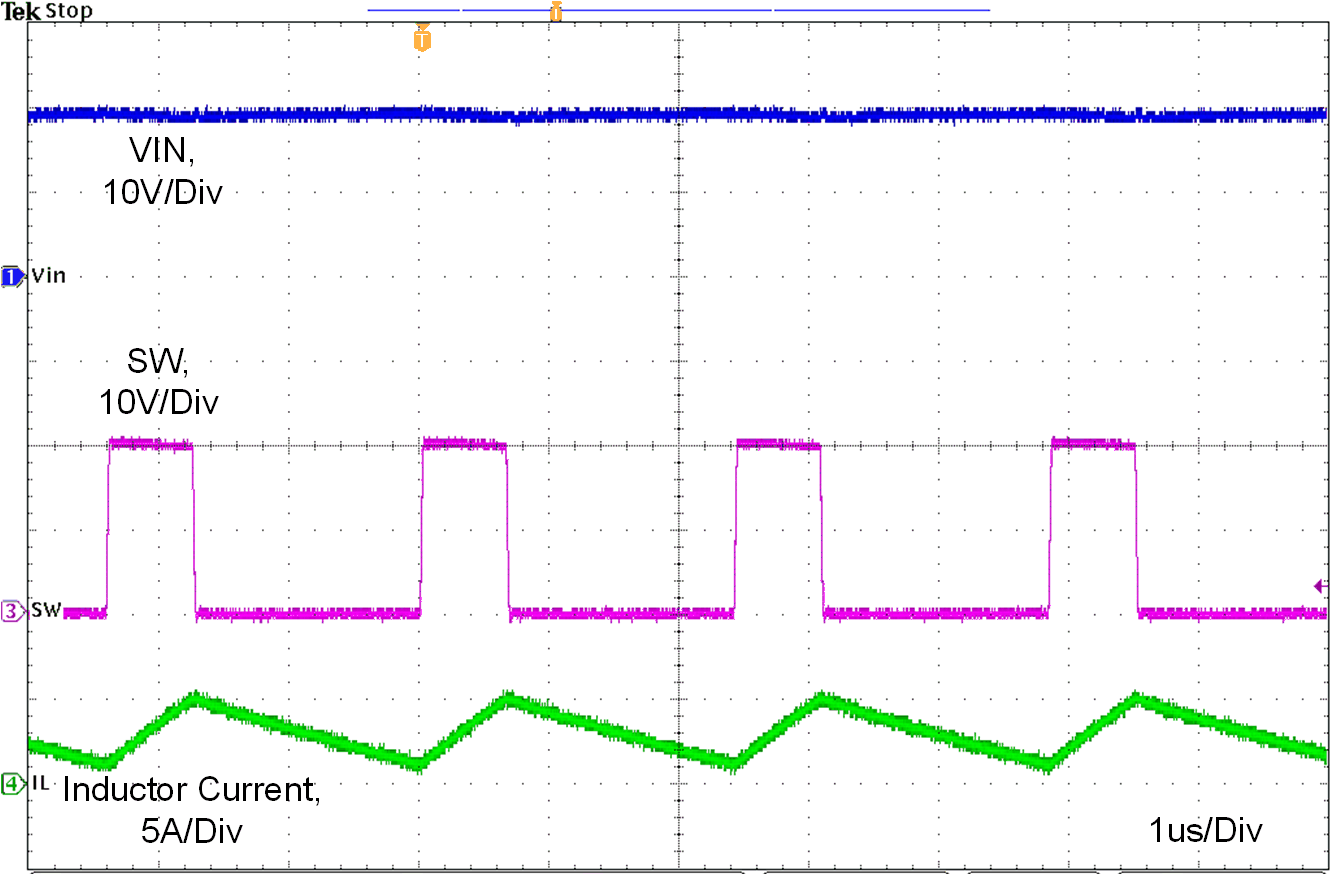

Figure 10-10 Switching Frequency When RT = 8.87 kΩ
VIN = 13.5 V L = 2.2 uH ILOAD = 3 A
Figure 10-12 Synchronizing to External 2.1-MHz Clock
VIN = 13.5 V L = 2.2 uH ILOAD = 3 A
Figure 10-9 Switching Frequency When RT = 8.87 kΩ
VIN = 7.5 V L = 2.2 uH ILOAD = 3 A

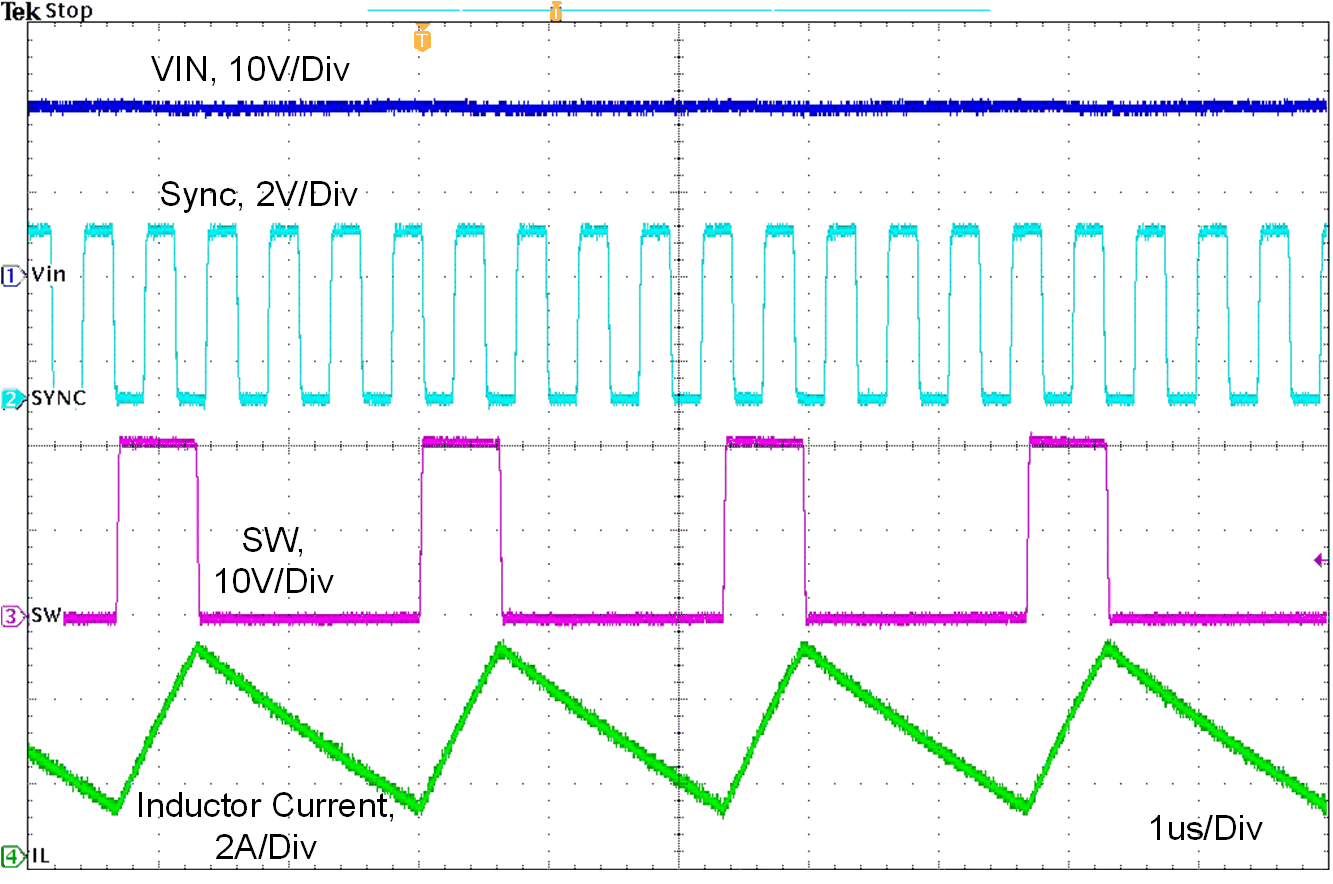

Figure 10-11 Synchronizing to External 2.1-MHz Clock
VIN = 20 V L = 2.2 uH ILOAD = 3 A
Figure 10-13 Synchronizing to External 2.1-MHz Clock
