7.6 Register Map

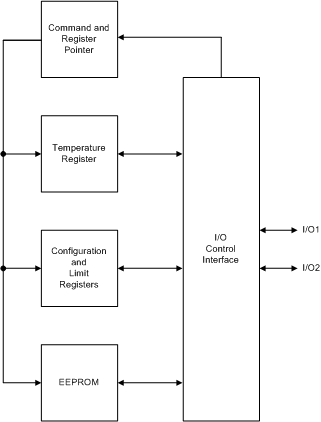

Figure 30 shows the internal register structure of the TMP107.

TMP107 Internal_Register_Structure_sbos716.gifFigure 30. Register Structure

Table 3 describes the registers available with their addresses, followed by the description of the bits in each register. All register default values (except for the temperature register and die ID register) can be modified by writing to the EEPROM. All reset values listed are the factory-default values.

Table 3. Register Map and Pointer Addresses

P3 P2 P1 P0 ADDRESS (HEX) REGISTER NAME
0 0 0 0 0h Temperature register
0 0 0 1 1h Configuration register
0 0 1 0 2h High limit 1
0 0 1 1 3h Low limit 1
0 1 0 0 4h High limit 2
0 1 0 1 5h Low limit 2
0 1 1 0 6h EEPROM 1 register
0 1 1 1 7h EEPROM 2 register
1 0 0 0 8h EEPROM 3 register
1 0 0 1 9h EEPROM 4 register
1 0 1 0 Ah EEPROM 5 register
1 0 1 1 Bh EEPROM 6 register
1 1 0 0 Ch EEPROM 7 register
1 1 0 1 Dh EEPROM 8 register
1 1 1 1 Fh Die identification (read only)
