Repetitive Pulsed Current SOA

For applications where current is pulsed between a high current and no current, the allowable capabilities are limited by short-duration heating in the leadframe. The TMCS1100-Q1 can tolerate higher current ranges under some conditions, however, for repetitive pulsed events, the current levels must satisfy both the pulsed current SOA and the RMS continuous current constraint. Pulse duration, duty cycle, and ambient temperate all impact the SOA for repetitive pulsed events. Figure 8-6, Figure 8-7, Figure 8-8, and Figure 8-9 illustrate repetitive stress levels based on test results from the TMCS1100EVM under which parametric performance and isolation integrity was not impacted post-stress for multiple ambient temperatures. At high duty cycles or long pulse durations, this limit approaches the continuous current SOA for a RMS value defined by Equation 15.

Equation 15. GUID-322C3A20-2E34-438D-B1ED-211CFF435E0B-low.gif

where

  • IIN,RMS is the RMS input current level
  • IIN,P is the pulse peak input current
  • D is the pulse duty cycle

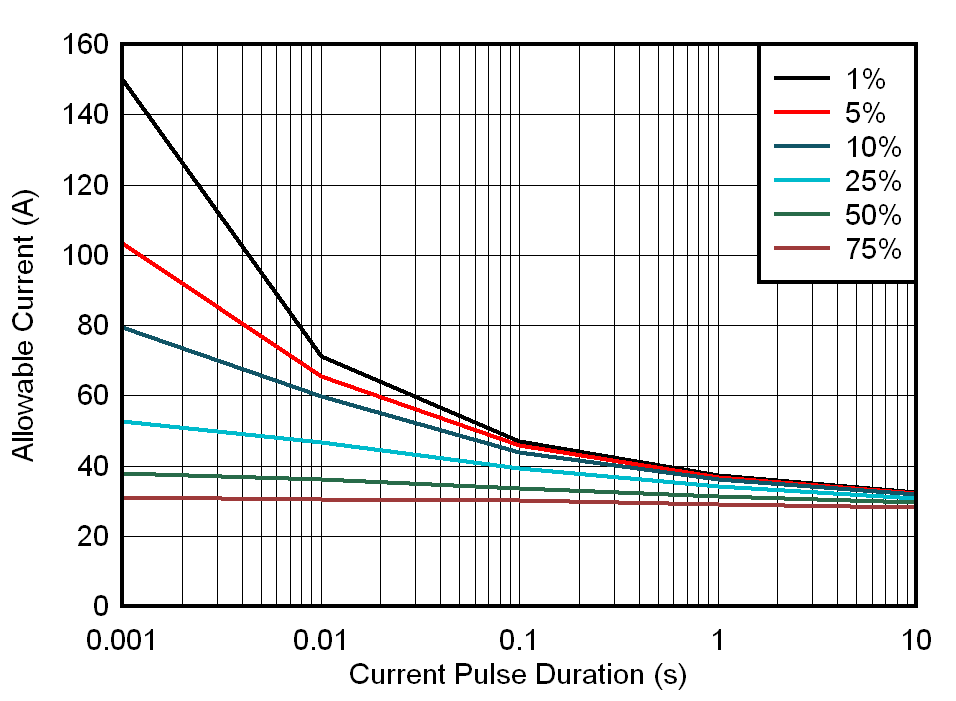

TA = 25°C
Figure 8-6 Maximum Repetitive Pulsed Current vs. Pulse Duration

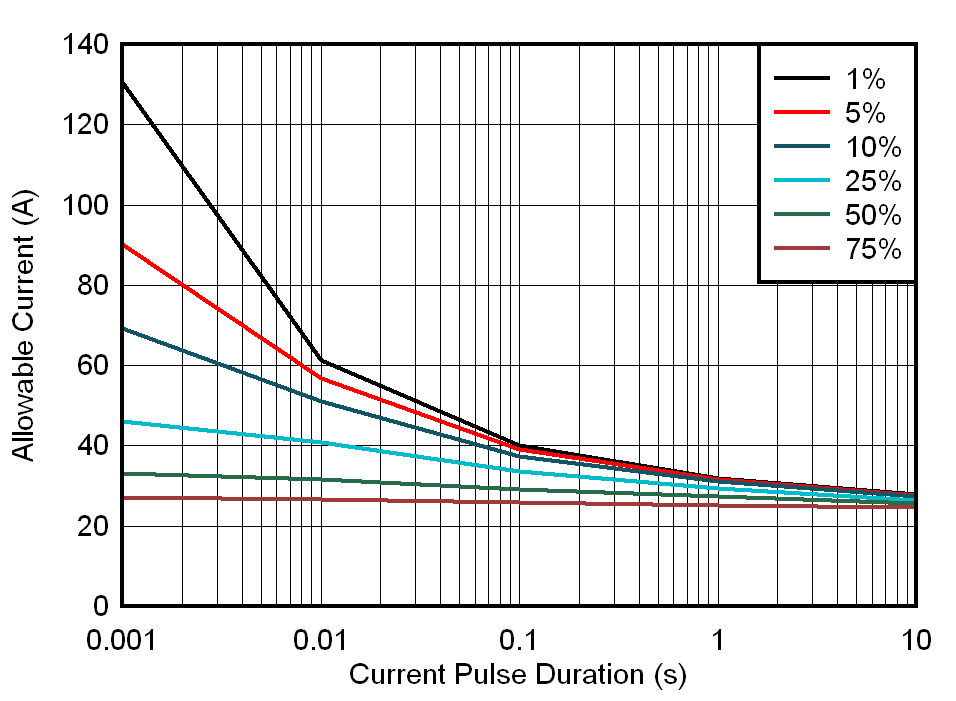

TA = 105°C
Figure 8-8 Maximum Repetitive Pulsed Current vs. Pulse Duration

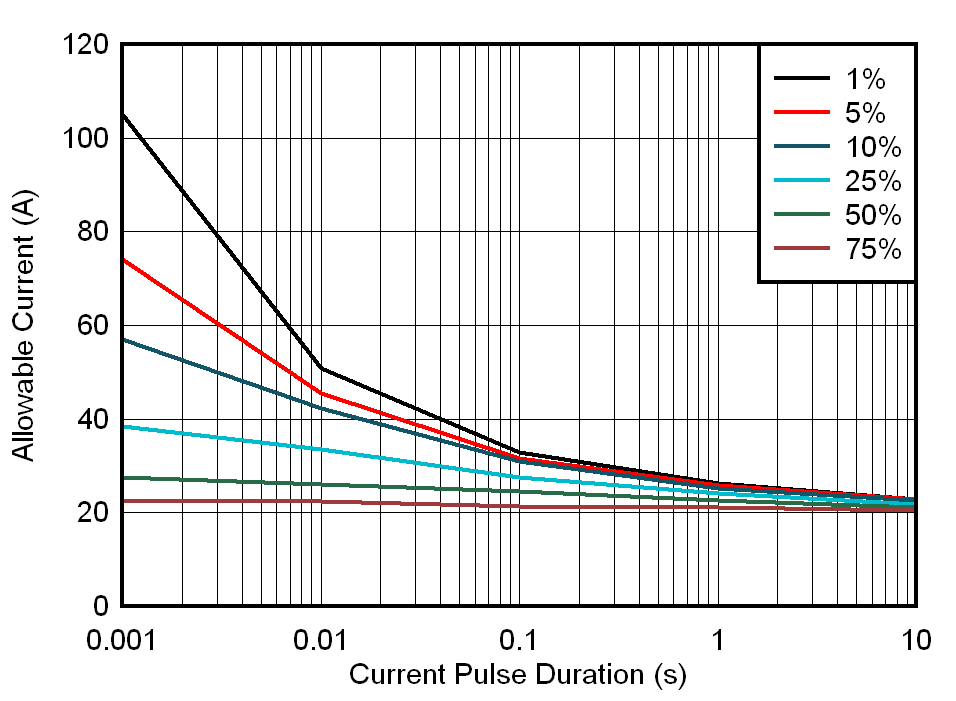

TA = 85°C
Figure 8-7 Maximum Repetitive Pulsed Current vs. Pulse Duration
TA = 125°C
Figure 8-9 Maximum Repetitive Pulsed Current vs. Pulse Duration
