ZHCSM20 June   2021 TMCS1100-Q1

PRODUCTION DATA

  1. 特性
  2. 应用
  3. 说明
  4. Revision History
  5. Device Comparison
  6. Pin Configuration and Functions
  7. Specifications
    1. 7.1  Absolute Maximum Ratings
    2. 7.2  ESD Ratings
    3. 7.3  Recommended Operating Conditions
    4. 7.4  Thermal Information
    5. 7.5  Power Ratings
    6. 7.6  Insulation Specifications
    7. 7.7  Safety-Related Certifications
    8. 7.8  Safety Limiting Values
    9. 7.9  Electrical Characteristics
    10. 7.10 Typical Characteristics
      1. 7.10.1 Insulation Characteristics Curves
  8. Parameter Measurement Information
    1. 8.1 Accuracy Parameters
      1. 8.1.1 Sensitivity Error
      2. 8.1.2 Offset Error and Offset Error Drift
      3. 8.1.3 Nonlinearity Error
      4. 8.1.4 Power Supply Rejection Ratio
      5. 8.1.5 Common-Mode Rejection Ratio
      6. 8.1.6 Reference Voltage Rejection Ratio
      7. 8.1.7 External Magnetic Field Errors
    2. 8.2 Transient Response Parameters
      1. 8.2.1 Slew Rate
      2. 8.2.2 Propagation Delay and Response Time
      3. 8.2.3 Current Overload Parameters
      4. 8.2.4 CMTI, Common-Mode Transient Immunity
    3. 8.3 Safe Operating Area
      1. 8.3.1 Continuous DC or Sinusoidal AC Current
      2. 8.3.2 Repetitive Pulsed Current SOA
      3. 8.3.3 Single Event Current Capability
  9. Detailed Description
    1. 9.1 Overview
    2. 9.2 Functional Block Diagram
    3. 9.3 Feature Description
      1. 9.3.1 Current Input
      2. 9.3.2 Input Isolation
      3. 9.3.3 High-Precision Signal Chain
        1. 9.3.3.1 Temperature Stability
        2. 9.3.3.2 Lifetime and Environmental Stability
        3. 9.3.3.3 Frequency Response
        4. 9.3.3.4 Transient Response
      4. 9.3.4 External Reference Voltage Input
      5. 9.3.5 Current-Sensing Measurable Ranges
    4. 9.4 Device Functional Modes
      1. 9.4.1 Power-Down Behavior
  10. 10Application and Implementation
    1. 10.1 Application Information
      1. 10.1.1 Total Error Calculation Examples
        1. 10.1.1.1 Room Temperature Error Calculations
        2. 10.1.1.2 Full Temperature Range Error Calculations
    2. 10.2 Typical Application
      1. 10.2.1 Design Requirements
      2. 10.2.2 Detailed Design Procedure
  11. 11Power Supply Recommendations
  12. 12Layout
    1. 12.1 Layout Guidelines
    2. 12.2 Layout Example
  13. 13Device and Documentation Support
    1. 13.1 Device Support
      1. 13.1.1 Development Support
    2. 13.2 Documentation Support
      1. 13.2.1 Related Documentation
    3. 13.3 接收文档更新通知
    4. 13.4 支持资源
    5. 13.5 Trademarks
    6. 13.6 Electrostatic Discharge Caution
    7. 13.7 术语表
  14. 14Mechanical, Packaging, and Orderable Information

封装选项

机械数据 (封装 | 引脚)
散热焊盘机械数据 (封装 | 引脚)
订购信息

Typical Characteristics

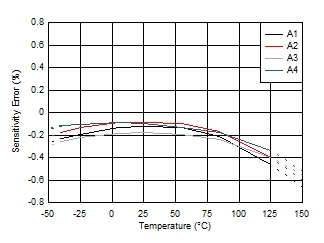

GUID-6A300F47-0FF0-403C-96B9-21A9EDED3204-low.gifFigure 7-1 Sensitivity Error vs. Temperature

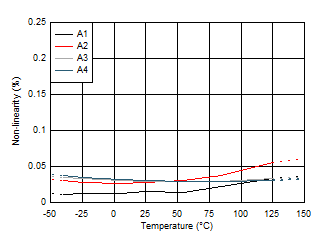

GUID-27F839E6-F3AE-43AD-A0CE-C63EE3B0336D-low.gifFigure 7-3 Non-Linearity vs. Temperature
TMCS1100A1-Q1
Figure 7-5 Input Offset Current Production Distribution
TMCS1100A3-Q1
Figure 7-7 Input Offset Current Production Distribution
GUID-66DC8D30-6AC1-4A18-9AAA-F21EF9EEFAB2-low.gifFigure 7-9 Sensitivity vs. Frequency, All Gains Normalized to 1 Hz
GUID-D0F8C11A-C32A-4879-9F1D-DC7612EFFAC7-low.gifFigure 7-11 PSRR vs. Frequency
GUID-DFA1DBE9-36C9-4A83-94E2-2BA24734B2B6-low.gifFigure 7-13 Output Impedance vs. Frequency
GUID-6A4735FE-7595-4180-94B0-9FE45486358B-low.gifFigure 7-15 Output Voltage Offset vs. VREF

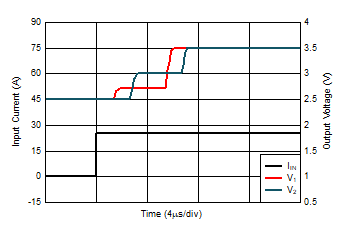

GUID-9670F89B-363F-4D98-9626-7256E355DBBE-low.gifFigure 7-17 Voltage Output Step, Rising
GUID-F45B61CB-0A2C-4CAB-A8F0-7A110CF31425-low.gifFigure 7-19 Current Overload Response

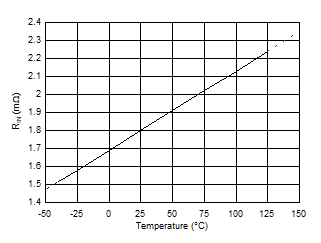

GUID-F3F80ED5-C52B-49C5-B46C-3F07E4D3632C-low.gifFigure 7-21 Input Conductor Resistance vs. Temperature
GUID-BCE9BDCF-531F-4048-8841-138D7068C8CF-low.gifFigure 7-2 Input Offset Current vs. Temperature
All sensitivities

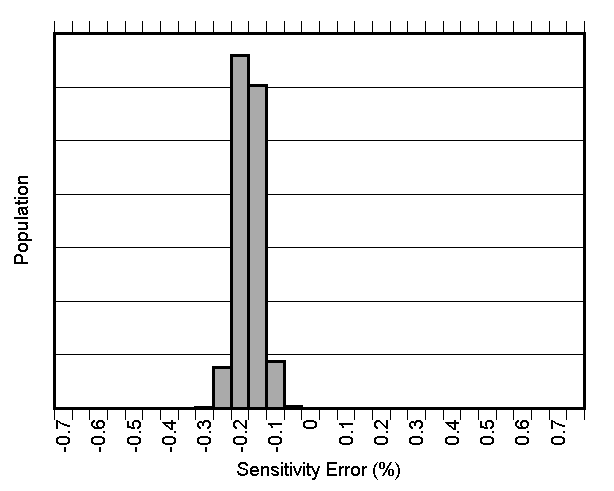

Figure 7-4 Sensitivity Error Production Distribution
TMCS1100A2-Q1
Figure 7-6 Input Offset Current Production Distribution
TMCS1100A4-Q1
Figure 7-8 Input Offset Current Production Distribution

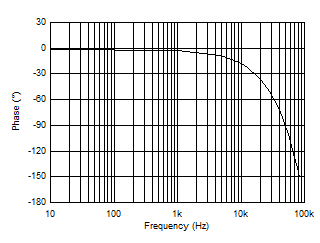

GUID-1FB9C97C-2972-44FD-B80C-4E56D0AA2F61-low.gifFigure 7-10 Phase vs. Frequency, All Gains



Figure 7-12 Output Swing vs. Output Current

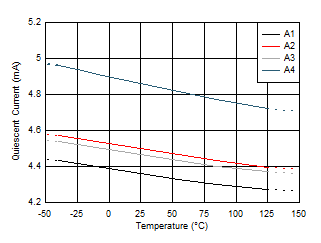

GUID-B4B95C90-3B86-4046-BADB-25153E63EAB0-low.gifFigure 7-14 Quiescent Current vs. Temperature
GUID-76CC38EE-98DD-4AB7-A7AE-DF32F141D540-low.gifFigure 7-16 Input-Referred Noise vs. Frequency
GUID-621C337C-D85B-4EE8-8071-56163978510D-low.gifFigure 7-18 Voltage Output Step, Falling
Figure 7-20 Startup Transient Response
