9.5.2 26-Bit 3.23 Number Format

All mixer gain coefficients are 26-bit coefficients using a 3.23 number format. Numbers formatted as 3.23 numbers means that there are 3 bits to the left of the binary point and 23 bits to the right of the binary point. This is shown in Figure 65.

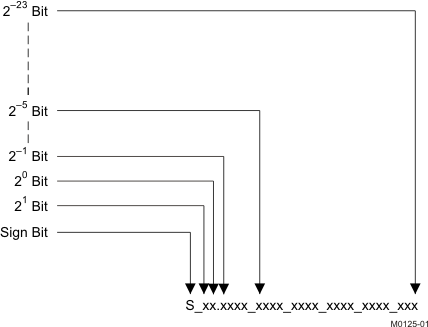

TAS5755M m0125-01_los599.gifFigure 65. 3.23 Format

The decimal value of a 3.23 format number can be found by following the weighting shown in Figure 65. If the most significant bit is logic 0, the number is a positive number, and the weighting shown yields the correct number. If the most significant bit is a logic 1, then the number is a negative number. In this case every bit must be inverted, a 1 added to the result, and then the weighting shown in Figure 66 applied to obtain the magnitude of the negative number.

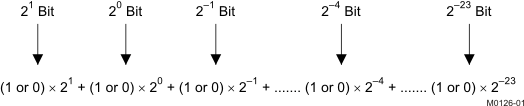

TAS5755M m0126-01_los599.gifFigure 66. Conversion Weighting Factors — 3.23 Format To Floating Point

Gain coefficients, entered via the I2C bus, must be entered as 32-bit binary numbers. The format of the 32-bit number (4-byte or 8-digit hexadecimal number) is shown in Figure 67.

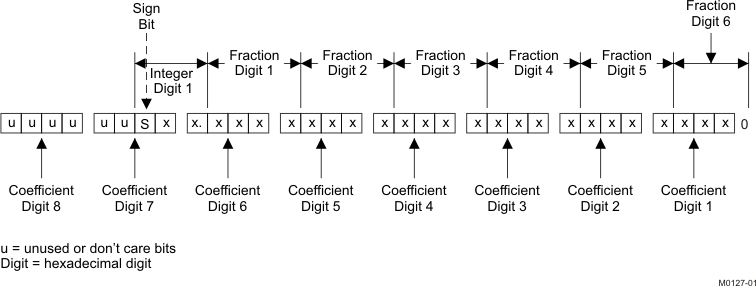

TAS5755M m0127-01_los599.gifFigure 67. Alignment of 3.23 Coefficient in 32-Bit I2C Word

Table 1. Sample Calculation for 3.23 Format

db LINEAR DECIMAL HEX (3.23 Format)
0 1 8,388,608 80 0000
5 1.77 14,917,288 00E3 9EA8
–5 0.56 4,717,260 0047 FACC
X L = 10(X/20) D = 8,388,608 × L H = dec2hex (D, 8)

Table 2. Sample Calculation for 9.17 Format

db LINEAR DECIMAL HEX (9.17 Format)
0 1 131,072 2 0000
5 1.77 231,997 3 8A3D
–5 0.56 73,400 1 1EB8
X L = 10(X/20) D = 131,072 × L H = dec2hex (D, 8)
