I2S Timing

I2S timing uses LRCLK to define when the data being transmitted is for the left channel and when it is for the right channel. LRCLK is low for the left channel and high for the right channel. A bit clock running at 32, 48, or 64 × fS is used to clock in the data. There is a delay of one bit clock from the time the LRCLK signal changes state to the first bit of data on the data lines. The data is written MSB-first and is valid on the rising edge of bit clock. The DAP masks unused trailing data bit positions.

TAS5755M t0034-01.gif

NOTE:

All data presented in 2s-complement form with MSB first.

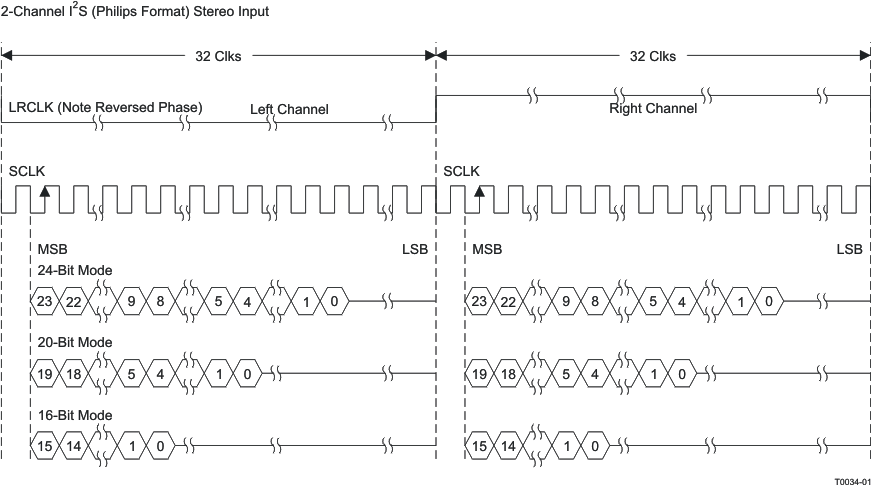

Figure 46. I2S 64-FS Format
TAS5755M t0092-01.gif

NOTE:

All data presented in 2s-complement form with MSB first.
Figure 47. I2S 48-FS Format
TAS5755M t0266-01_los549.gif

NOTE:

All data presented in 2s-complement form with MSB first.
Figure 48. I2S 32-FS Format
