6 Parameter Measurement Information

Phase relationships between waveforms were chosen arbitrarily for the examples listed in the following table. All input pulses are supplied by generators having the following characteristics: PRR ≤ 1MHz, ZO = 50Ω, tt < 2.5ns.

For clock inputs, fmax is measured when the input duty cycle is 50%.

The outputs are measured individually with one input transition per measurement.

TEST S1 S2 RL CL ΔV VCC
tPLH, tPHL OPEN OPEN — 15pF, 50pF — ALL
tPLZ, tPZL CLOSED OPEN 1kΩ 15pF, 50pF 0.15V ≤ 2.5V
tPHZ, tPZH OPEN CLOSED 1kΩ 15pF, 50pF 0.15V ≤ 2.5V
tPLZ, tPZL CLOSED OPEN 1kΩ 15pF, 50pF 0.3V > 2.5V
tPHZ, tPZH OPEN CLOSED 1kΩ 15pF, 50pF 0.3V > 2.5V

SN74LV8T374 Load Circuit for 3-State Outputs
(1) CL includes probe and test-fixture capacitance.
Figure 6-1 Load Circuit for 3-State Outputs

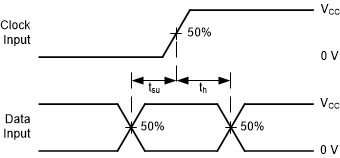

SN74LV8T374 Voltage Waveforms, Setup and Hold TimesFigure 6-3 Voltage Waveforms, Setup and Hold Times

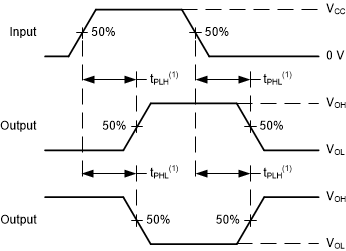

SN74LV8T374 Voltage Waveforms Propagation Delays
(3) The greater between tPZL and tPZH is the same as ten.
(4) The greater between tPLZ and tPHZ is the same as tdis.
Figure 6-5 Voltage Waveforms Propagation Delays
SN74LV8T374 Voltage Waveforms, Pulse DurationFigure 6-2 Voltage Waveforms, Pulse Duration
SN74LV8T374 Voltage Waveforms Propagation Delays
(1) The greater between tPLH and tPHL is the same as tpd.
Figure 6-4 Voltage Waveforms Propagation Delays

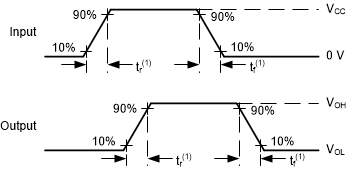

SN74LV8T374 Voltage Waveforms, Input and Output Transition Times
(1) The greater between tr and tf is the same as tt.
Figure 6-6 Voltage Waveforms, Input and Output Transition Times
