6 Parameter Measurement Information

Unless otherwise noted, all input pulses are supplied by generators having the following characteristics:

  • f =1 MHz
  • Z0 = 50 Ω
  • dv / dt ≤ 1 ns/V

A. CL includes probe and jig capacitance.
Figure 6-1 Load Circuit
A. Output waveform on the conditions that input is driven to a valid Logic Low.
B. Output waveform on the condition that input is driven to a valid Logic High.
Figure 6-2 Load Circuit Conditions

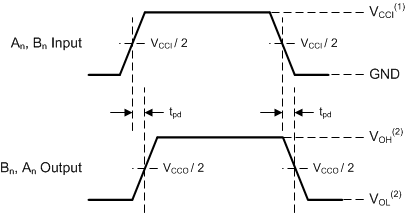

A. VCCI is the supply pin associated with the input port.
B. VOH and VOL are typical output voltage levels with specified RL, CL, and S1.
Figure 6-3 Propagation Delay
A. Output waveform on the condition that input is driven to a valid Logic Low.
B. Output waveform on the condition that input is driven to a valid Logic High.
C. VCCO is the supply pin associated with the output port.
D. VOH and VOL are typical output voltage levels with specified RL, CL, and S1.
Figure 6-4 Enable Time And Disable Time
