7.1 Functional Block Diagram

Pin numbers shown are for the DB, DBQ, DGV, DW, or PW package.

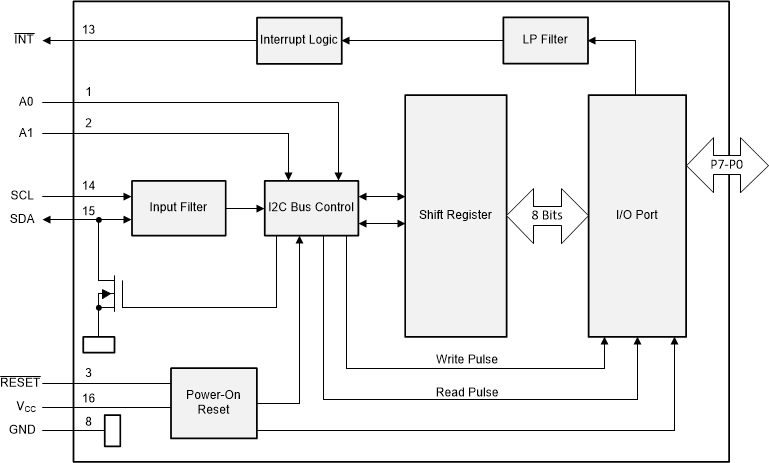

Figure 7-1 Functional Block Diagram
At power-on reset, all registers return to default values.
Figure 7-2 Simplified Schematic Of P0 To P7
